apochromat design, with movie
Contents
clear
load apo1
global cv th rn;
movie
filename = 'apo1x.avi';
aviobj = avifile(filename);
N = 21;
shape = linspace(-4,4,N);
data = zeros(length(shape),4);
for k=1:length(shape)
v=[0 0 shape(k)];
show_frame;
aviobj = addframe(aviobj,getframe(gcf));
data(k,:) = f;
end
aviobj = close(aviobj);
minimum 29.6568 at 2 16
minimum 29.6568 at -3.05512 -3.93701 -4
minimum 2.44574 at 3 6
minimum 2.44574 at -3.68504 -3.87402 -3.6
minimum 4.6169 at 10 15
minimum 4.6169 at -3.11811 -3.43307 -3.2
minimum 1.18755 at 17 24
minimum 1.18755 at -2.55118 -2.99213 -2.8
minimum 1.07733 at 25 36
minimum 1.07733 at -1.79528 -2.48819 -2.4
minimum 2.12919 at 28 33
minimum 2.12919 at -1.98425 -2.29921 -2
minimum 0.401989 at 36 44
minimum 0.401989 at -1.29134 -1.79528 -1.6
minimum 0.400446 at 44 54
minimum 0.400446 at -0.661417 -1.29134 -1.2
minimum 0.0545833 at 99 5
minimum 0.0545833 at -3.74803 2.17323 -0.8
minimum 0.0501199 at 54 58
minimum 0.0501199 at -0.409449 -0.661417 -0.4
minimum 0.0706656 at 86 27
minimum 0.0706656 at -2.3622 1.35433 0
minimum 0.212185 at 58 64
minimum 0.212185 at -0.0314961 -0.409449 0.4
minimum 0.403471 at 51 64
minimum 0.403471 at -0.0314961 -0.850394 0.8
minimum 0.136669 at 95 18
minimum 0.136669 at -2.92913 1.92126 1.2
minimum 0.489954 at 99 15
minimum 0.489954 at -3.11811 2.17323 1.6
minimum 0.148026 at 36 74
minimum 0.148026 at 0.598425 -1.79528 2
minimum 1.10022 at 30 66
minimum 1.10022 at 0.0944882 -2.17323 2.4
minimum 0.0967267 at 25 68
minimum 0.0967267 at 0.220472 -2.48819 2.8
minimum 0.626444 at 20 71
minimum 0.626444 at 0.409449 -2.80315 3.2
minimum 4.57156 at 14 60
minimum 4.57156 at -0.283465 -3.1811 3.6
minimum 3.75043 at 6 40
minimum 3.75043 at -1.54331 -3.68504 4

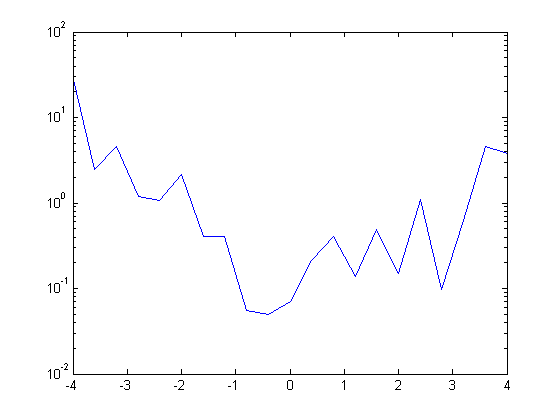

find minima in each cross-section
semilogy(shape,data(:,1));
[c idx] = min(data(:,1));
v = data(idx,2:4);
disp('starting point');
disp(v);
f = apochromat(v);
fprintf('merit function %g\n',norm(f));
starting point
-0.4094 -0.6614 -0.4000
merit function 0.223875

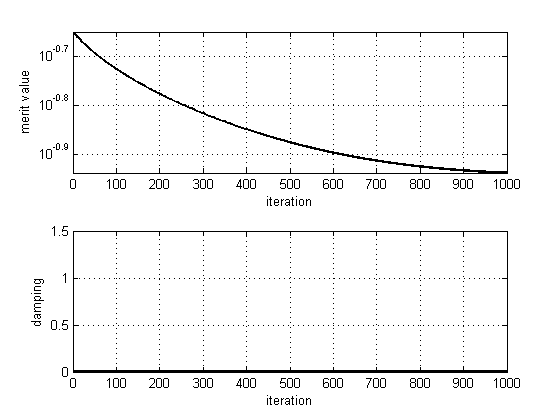

trial 1
[xo vout hp] = cycle(v,@apochromat);
disp('solution');
disp(xo);
show_progress(hp);
# merit damping chg r ratio
1 0.2233 0.00497 0.592 3 0.000128
2 0.2228 0.00491 0.585 3 0.000128
3 0.2222 0.00485 0.58 3 0.000129
4 0.2217 0.0048 0.574 3 0.000129
5 0.2212 0.00475 0.568 3 0.00013
6 0.2207 0.0047 0.563 3 0.00013
7 0.2201 0.00465 0.557 3 0.000131
8 0.2196 0.00461 0.552 3 0.000131
9 0.2191 0.00456 0.547 3 0.000132
10 0.2186 0.00452 0.543 3 0.000132
11 0.2181 0.00447 0.538 3 0.000133
12 0.2177 0.00443 0.533 3 0.000133
13 0.2172 0.00439 0.529 3 0.000134
14 0.2167 0.00435 0.525 3 0.000134
15 0.2162 0.00432 0.521 3 0.000135
16 0.2158 0.00428 0.516 3 0.000135
17 0.2153 0.00424 0.513 3 0.000136
18 0.2149 0.00421 0.509 3 0.000136
19 0.2144 0.00417 0.505 3 0.000136
20 0.214 0.00414 0.501 3 0.000137
21 0.2135 0.00411 0.498 3 0.000137
22 0.2131 0.00407 0.494 3 0.000138
23 0.2127 0.00404 0.491 3 0.000138
24 0.2123 0.00401 0.487 3 0.000138
25 0.2118 0.00398 0.484 3 0.000139
26 0.2114 0.00395 0.481 3 0.000139
27 0.211 0.00392 0.478 3 0.00014
28 0.2106 0.0039 0.475 3 0.00014
29 0.2102 0.00387 0.472 3 0.00014
30 0.2098 0.00384 0.469 3 0.000141
31 0.2094 0.00382 0.466 3 0.000141
32 0.209 0.00379 0.463 3 0.000141
33 0.2086 0.00377 0.46 3 0.000142
34 0.2082 0.00374 0.458 3 0.000142
35 0.2078 0.00372 0.455 3 0.000143
36 0.2074 0.00369 0.453 3 0.000143
37 0.2071 0.00364 0.446 3 0.000143
38 0.2067 0.00361 0.443 3 0.000144
39 0.2063 0.00359 0.441 3 0.000144
40 0.2059 0.00357 0.439 3 0.000144
41 0.2056 0.00355 0.436 3 0.000144
42 0.2052 0.00353 0.434 3 0.000145
43 0.2049 0.00351 0.432 3 0.000145
44 0.2045 0.00349 0.43 3 0.000145
45 0.2041 0.00347 0.427 3 0.000146
46 0.2038 0.00345 0.425 3 0.000146
47 0.2034 0.00343 0.423 3 0.000146
48 0.2031 0.00341 0.421 3 0.000147
49 0.2027 0.00339 0.419 3 0.000147
50 0.2024 0.00337 0.417 3 0.000147
51 0.2021 0.00336 0.415 3 0.000147
52 0.2017 0.00334 0.413 3 0.000148
53 0.2014 0.00332 0.411 3 0.000148
54 0.2011 0.0033 0.41 3 0.000148
55 0.2007 0.00329 0.408 3 0.000148
56 0.2004 0.00327 0.406 3 0.000149
57 0.2001 0.00325 0.404 3 0.000149
58 0.1997 0.00324 0.403 3 0.000149
59 0.1994 0.00322 0.401 3 0.000149
60 0.1991 0.00321 0.399 3 0.00015
61 0.1988 0.00319 0.398 3 0.00015
62 0.1985 0.00318 0.396 3 0.00015
63 0.1982 0.00316 0.394 3 0.00015
64 0.1978 0.00315 0.393 3 0.00015
65 0.1975 0.00313 0.391 3 0.000151
66 0.1972 0.00312 0.389 3 0.000151
67 0.1969 0.0031 0.388 3 0.000151
68 0.1966 0.00309 0.386 3 0.000151
69 0.1963 0.00308 0.385 3 0.000151
70 0.196 0.00306 0.383 3 0.000151
71 0.1957 0.00305 0.382 3 0.000152
72 0.1954 0.00303 0.38 3 0.000152
...

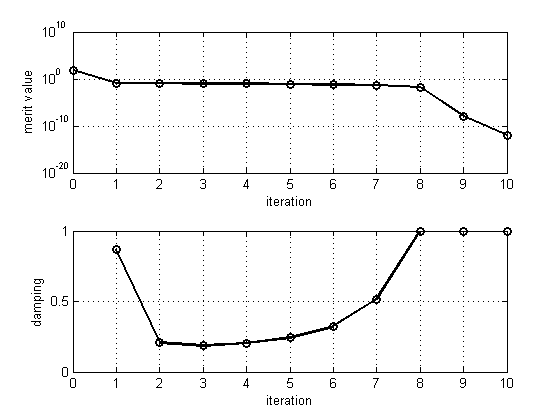

trial 2
v = [-2 1 -0.5];
[xo vout hp] = cycle(v,@apochromat);
disp('solution');
disp(xo);
show_progress(hp);
xop = xo;
# merit damping chg r ratio
1 0.1362 0.869 24.2 3 4.46e-006
2 0.1148 0.206 0.794 3 1.38e-005
3 0.1021 0.188 0.564 3 1.41e-005
4 0.09072 0.203 0.49 3 1.44e-005
5 0.07892 0.242 0.462 3 1.46e-005
6 0.06541 0.322 0.464 3 1.49e-005
7 0.04756 0.514 0.5 3 1.51e-005
8 0.01586 1 0.47 3 1.54e-005
9 1.057e-008 1 0.00952 3 1.56e-005
10 1.198e-012 1 2.58e-007 3 1.56e-005
solution
-2.4596
1.4076
-0.1190
trial 3
v = [-0.5 1 -2];
[xo vout hp] = cycle(v,@apochromat);
disp('solution');
disp(xo);
show_progress(hp);
# merit damping chg r ratio
1 145.4 7.85e-005 1.5 3 5.41e-008
2 145.4 0.000246 2.93 3 8.69e-008
3 145.4 0.00081 4.48 3 1.89e-007
4 145.2 0.00209 9.39 3 2.32e-007
5 144.8 0.0064 10.7 3 6.53e-007
6 144.3 0.00625 19.4 3 3.44e-007
7 142.9 0.0198 16.3 3 1.51e-006
8 142.9 5.57e-005 2.68 3 2.09e-008
9 142.6 0.00414 17.9 3 2.47e-007
10 140.9 0.0238 18.6 3 1.53e-006
11 140.1 0.011 48.7 3 2.66e-007
12 135.9 0.0598 24.9 3 4.9e-006
13 131 0.0723 31.9 3 2.82e-006
14 5.027 0.196 147 3 8.54e-007
15 5.004 0.00615 2.36 3 1.58e-005
16 4.987 0.00562 1.72 3 1.92e-005
17 4.972 0.00547 1.46 3 2.16e-005
18 4.958 0.00542 1.31 3 2.35e-005
19 4.944 0.00539 1.2 3 2.51e-005
20 4.93 0.00543 1.12 3 2.65e-005
21 4.916 0.00541 1.05 3 2.78e-005
22 4.902 0.00545 1.01 3 2.89e-005
23 4.888 0.00545 0.96 3 3e-005
24 4.874 0.00549 0.926 3 3.09e-005
25 4.861 0.00549 0.89 3 3.18e-005
26 4.847 0.00549 0.858 3 3.26e-005
27 4.833 0.00552 0.835 3 3.33e-005
28 4.82 0.00552 0.81 3 3.4e-005
29 4.806 0.00552 0.787 3 3.46e-005
30 4.793 0.00552 0.766 3 3.52e-005
31 4.779 0.00551 0.747 3 3.57e-005
32 4.766 0.00551 0.73 3 3.62e-005
33 4.753 0.00549 0.712 3 3.66e-005
34 4.74 0.00548 0.697 3 3.7e-005
35 4.726 0.00547 0.682 3 3.74e-005
36 4.713 0.00549 0.673 3 3.77e-005
37 4.7 0.00547 0.66 3 3.8e-005
38 4.687 0.00546 0.648 3 3.82e-005
39 4.674 0.00545 0.636 3 3.84e-005
40 4.662 0.00543 0.626 3 3.86e-005
41 4.649 0.00542 0.616 3 3.88e-005
42 4.636 0.0054 0.607 3 3.89e-005
43 4.624 0.00538 0.598 3 3.91e-005
44 4.611 0.00537 0.589 3 3.92e-005
45 4.599 0.00535 0.581 3 3.92e-005
46 4.586 0.00533 0.574 3 3.93e-005
47 4.574 0.00532 0.566 3 3.93e-005
48 4.562 0.00529 0.559 3 3.93e-005
49 4.55 0.00527 0.552 3 3.93e-005
50 4.538 0.00525 0.546 3 3.93e-005
51 4.526 0.00523 0.539 3 3.93e-005
52 4.514 0.00521 0.534 3 3.92e-005
53 4.502 0.00519 0.528 3 3.92e-005
54 4.49 0.0052 0.526 3 3.91e-005
55 4.479 0.00518 0.521 3 3.9e-005
56 4.467 0.00516 0.516 3 3.89e-005
57 4.456 0.00514 0.511 3 3.87e-005
58 4.444 0.00511 0.506 3 3.86e-005
59 4.433 0.00509 0.502 3 3.85e-005
60 4.422 0.00507 0.498 3 3.83e-005
61 4.41 0.00505 0.494 3 3.82e-005
62 4.399 0.00503 0.49 3 3.8e-005
63 4.388 0.00501 0.487 3 3.78e-005
64 4.377 0.00498 0.483 3 3.76e-005
65 4.366 0.00496 0.479 3 3.74e-005
66 4.356 0.00494 0.476 3 3.72e-005
67 4.345 0.00492 0.473 3 3.7e-005
68 4.334 0.00489 0.47 3 3.68e-005
69 4.324 0.00487 0.467 3 3.65e-005
70 4.313 0.00485 0.464 3 3.63e-005
71 4.303 0.00482 0.461 3 3.61e-005
72 4.292 0.0048 0.458 3 3.58e-005
...
use all starting points
soln = zeros(length(shape),5);
for k=1:length(shape)
v = data(k,2:4);
[xo vout hp ncycles] = cycle(v,@apochromat);
f = apochromat(xo);
soln(k,:) = [norm(f) ncycles xo'];
fprintf('%4d %10.4g %5d %10.4f %10.4f %10.4f\n',k,soln(k,:));
end
1 0.1252 1000 0.3099 -0.8574 0.9274
2 0.1304 1000 0.2763 -0.7918 0.8557
3 0.06265 1000 -0.1225 -0.5105 0.3938
4 0.02282 1000 -0.3687 -0.5319 -0.1026
5 0.0942 1000 0.1608 -0.6980 0.7306
6 0.2763 1000 0.3154 -0.9053 0.9766
7 0.06581 1000 -0.0625 -0.5709 0.4979
8 0.09589 1000 0.1470 -0.6890 0.7170
9 3.729e-013 170 -2.4596 1.4076 -0.1190
10 0.1151 1000 0.1727 -0.7162 0.7517
11 3.686e-012 9 -2.4596 1.4076 -0.1190
12 0.03932 1000 0.3028 -0.8517 0.9196
13 0.07018 1000 0.3324 -0.8812 0.9558
14 8.502e-012 246 -2.4596 1.4076 -0.1190
15 2.525e-012 419 -2.4596 1.4076 -0.1190
16 5.077e-012 490 -2.4596 1.4076 -0.1190
17 0.05495 1000 0.3374 -0.8866 0.9622
18 0.5951 1000 0.2803 -0.5777 0.6795
19 0.5121 1000 0.2934 -0.6409 0.7315
20 15.96 1000 0.1075 -0.4685 0.6606
21 6.833 1000 0.2365 -0.5543 0.6954
thicken the lens
f = apochromat(xop);
fprintf('merit %g\n',norm(f));
close
th(2) = 2;
th(3) = 0.5;
th(4) = 1;
th(5) = 0.1;
th(6) = 2.5;
sa = ones(size(th))*50/8;
lp = [2 4 6];
drawsys;
merit 1.21987e-009
optimize thickened lens
[xo vout hp] = cycle(xop,@apochromat);
disp('solution');
disp(xo);
drawsys;
disp('lens prescription');
rd = curvature(cv);
disp([rd' th' rn(2,:)' sa']);
save apo2 cv th rn xo sa lp
# merit damping chg r ratio
1 11.39 1 20.9 3 1.56e-005
2 0.0005696 0.991 1.13 3 7.58e-006
3 2.472e-005 0.987 0.0628 3 7.9e-006
4 6.59e-009 1 0.000864 3 7.91e-006
5 3.679e-013 1 5.48e-008 3 7.91e-006
solution
-2.0316
1.2755
-0.3325
lens prescription
0 0 1.0000 6.2500
-30.5876 2.0000 1.6200 6.2500
-10.4086 0.5000 1.0000 6.2500
-9.0378 1.0000 1.6541 6.2500
-74.6384 0.1000 1.0000 6.2500
32.8980 2.5000 1.4866 6.2500
-16.4809 0 1.0000 6.2500
show aberrations
yap = 50/8;
uco = tan(2.0*pi/180);
wvl = [ 0.48613 0.58756 0.65627 ];
for k=1:3
ya = parax([yap 0],cv,th,rn(k,:));
yc = parax([0 uco],cv,th,rn(k,:));
fprintf('\n wavelength %g\n', wvl(k) );
ford(ya,yc,cv,th,rn(k,:),wvl(k));
end
wavelength 0.48613
W040 W131 W222 W220 W311
0.00 1.60 0.96 0.86 0.10
wavelength 0.58756
W040 W131 W222 W220 W311
0.00 1.35 0.79 0.71 0.09
wavelength 0.65627
W040 W131 W222 W220 W311
0.00 1.22 0.70 0.63 0.08
th = th*0;
