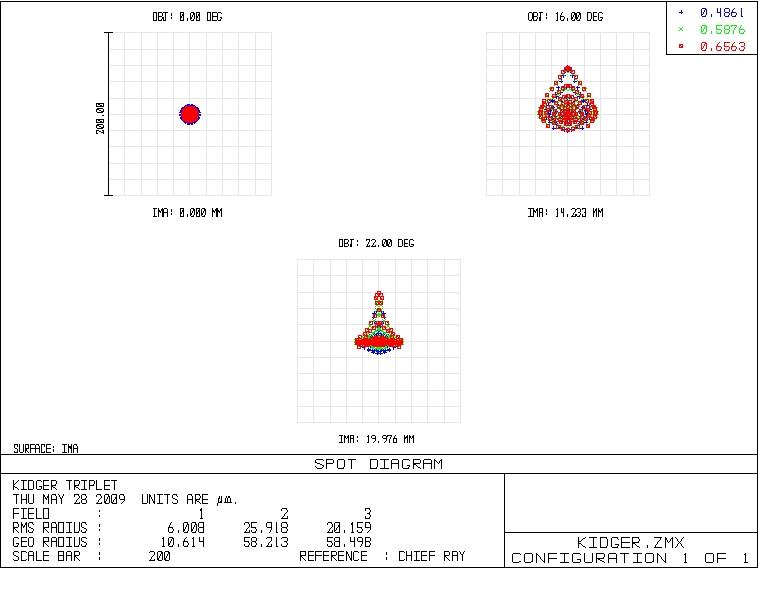

System/Prescription Data
File : Z:\eop601_summer2009\triplet\kidger.ZMX
Title: Kidger triplet
Date : THU MAY 28 2009
GENERAL LENS DATA:
Surfaces : 8
Stop : 5
System Aperture : Entrance Pupil Diameter = 12.5
Glass Catalogs : SCHOTT
Ray Aiming : Off
Apodization : Uniform, factor = 0.00000E+000
Temperature (C) : 2.00000E+001
Pressure (ATM) : 1.00000E+000
Adjust Index Data To Environment : Off
Effective Focal Length : 49.99929 (in air at system temperature and pressure)
Effective Focal Length : 49.99929 (in image space)
Back Focal Length : 41.83523
Total Track : 57.97624
Image Space F/# : 3.999943
Paraxial Working F/# : 3.999943
Working F/# : 3.981897
Image Space NA : 0.1240365
Object Space NA : 6.25e-010
Stop Radius : 4.919629
Paraxial Image Height : 20.20103
Paraxial Magnification : 0
Entrance Pupil Diameter : 12.5
Entrance Pupil Position : 11.55791
Exit Pupil Diameter : 12.15553
Exit Pupil Position : -48.39145
Field Type : Angle in degrees
Maximum Radial Field : 22
Primary Wavelength : 0.5875618 µm
Lens Units : Millimeters
Angular Magnification : 1.028338
Fields : 3
Field Type: Angle in degrees
# X-Value Y-Value Weight
1 0.000000 0.000000 1.000000
2 0.000000 16.000000 1.000000
3 0.000000 22.000000 1.000000
Vignetting Factors
# VDX VDY VCX VCY VAN
1 0.000000 0.000000 0.000000 0.000000 0.000000
2 0.000000 0.000000 0.000000 0.000000 0.000000
3 0.000000 0.000000 0.000000 0.000000 0.000000
Wavelengths : 3
Units: µm
# Value Weight
1 0.486133 1.000000
2 0.587562 1.000000
3 0.656273 1.000000

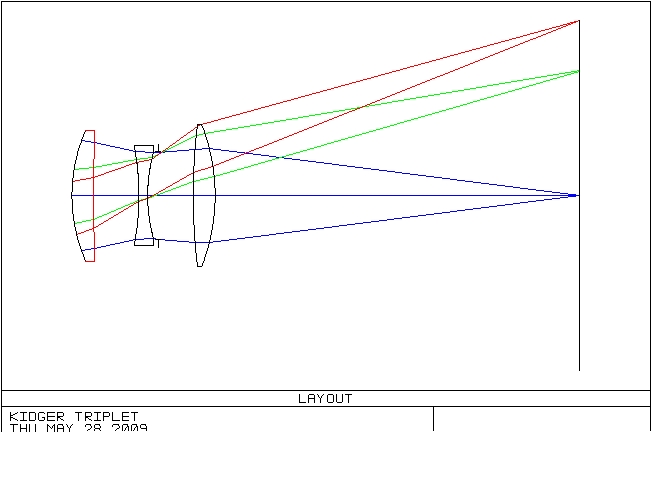

SURFACE DATA SUMMARY:
Surf Type Radius Thickness Glass Diameter Conic Comment
OBJ STANDARD Infinity Infinity 0 0
1 STANDARD 18.609 2.5 SK16 15 0
2 STANDARD 460.967 5.157 15 0
3 STANDARD -29.934 1 F6 11.43184 0
4 STANDARD 18.605 1.207 10.23307 0
STO STANDARD Infinity 4.007 9.987647 0
6 STANDARD 67.594 2.5 SK16 15.82848 0
7 STANDARD -22.162 41.60524 16.15535 0
IMA STANDARD Infinity 40.06868 0
SURFACE DATA DETAIL:
Surface OBJ : STANDARD
Surface 1 : STANDARD
Aperture : Floating Aperture
Maximum Radius : 7.5
Surface 2 : STANDARD
Aperture : Floating Aperture
Maximum Radius : 7.5
Surface 3 : STANDARD
Surface 4 : STANDARD
Surface STO : STANDARD
Surface 6 : STANDARD
Surface 7 : STANDARD
Surface IMA : STANDARD
COATING DEFINITIONS:
EDGE THICKNESS DATA:
Surf Edge
1 0.982721
2 4.545186
3 2.268173
4 0.489623
STO 4.471918
6 0.510559
7 43.129763
IMA 0.000000
SOLVE AND VARIABLE DATA:
Semi Diameter 1 : Fixed
Semi Diameter 2 : Fixed
INDEX OF REFRACTION DATA:
System Temperature: 20.0000 Celsius
System Pressure : 1.0000 Atmospheres
Absolute air index: 1.000272 at wavelength 0.587562 µm
Index data is relative to air at the system temperature and pressure.
Wavelengths are measured in air at the system temperature and pressure.
Surf Glass Temp Pres 0.486133 0.587562 0.656273
0 20.00 1.00 1.00000000 1.00000000 1.00000000
1 SK16 20.00 1.00 1.62755635 1.62040997 1.61727166
2 20.00 1.00 1.00000000 1.00000000 1.00000000
3 F6 20.00 1.00 1.64908771 1.63635885 1.63108155
4 20.00 1.00 1.00000000 1.00000000 1.00000000
5 20.00 1.00 1.00000000 1.00000000 1.00000000
6 SK16 20.00 1.00 1.62755635 1.62040997 1.61727166
7 20.00 1.00 1.00000000 1.00000000 1.00000000
8 20.00 1.00 1.00000000 1.00000000 1.00000000
THERMAL COEFFICIENT OF EXPANSION DATA:
Surf Glass TCE *10E-6
0 0.00000000
1 SK16 6.30000000
2 0.00000000
3 F6 8.50000000
4 0.00000000
5 0.00000000
6 SK16 6.30000000
7 0.00000000
8 0.00000000
GLOBAL VERTEX COORDINATES, ORIENTATIONS, AND ROTATION/OFFSET MATRICES:
Reference Surface: 7
Surf R11 R12 R13 X
R21 R22 R23 Y
R31 R32 R33 Z
1 1.0000000000 0.0000000000 0.0000000000 0.000000000E+000
0.0000000000 1.0000000000 0.0000000000 0.000000000E+000
0.0000000000 0.0000000000 1.0000000000 -1.637100000E+001
2 1.0000000000 0.0000000000 0.0000000000 0.000000000E+000
0.0000000000 1.0000000000 0.0000000000 0.000000000E+000
0.0000000000 0.0000000000 1.0000000000 -1.387100000E+001
3 1.0000000000 0.0000000000 0.0000000000 0.000000000E+000
0.0000000000 1.0000000000 0.0000000000 0.000000000E+000
0.0000000000 0.0000000000 1.0000000000 -8.714000000E+000
4 1.0000000000 0.0000000000 0.0000000000 0.000000000E+000
0.0000000000 1.0000000000 0.0000000000 0.000000000E+000
0.0000000000 0.0000000000 1.0000000000 -7.714000000E+000
5 1.0000000000 0.0000000000 0.0000000000 0.000000000E+000
0.0000000000 1.0000000000 0.0000000000 0.000000000E+000
0.0000000000 0.0000000000 1.0000000000 -6.507000000E+000
6 1.0000000000 0.0000000000 0.0000000000 0.000000000E+000
0.0000000000 1.0000000000 0.0000000000 0.000000000E+000
0.0000000000 0.0000000000 1.0000000000 -2.500000000E+000
7 1.0000000000 0.0000000000 0.0000000000 0.000000000E+000
0.0000000000 1.0000000000 0.0000000000 0.000000000E+000
0.0000000000 0.0000000000 1.0000000000 0.000000000E+000
8 1.0000000000 0.0000000000 0.0000000000 0.000000000E+000
0.0000000000 1.0000000000 0.0000000000 0.000000000E+000
0.0000000000 0.0000000000 1.0000000000 4.160524000E+001
GLOBAL SURFACE CENTER OF CURVATURE POINTS:
Reference Surface: 7
Surf X Y Z
1 0.0000000000 0.0000000000 2.2380000000
2 0.0000000000 0.0000000000 447.0960000000
3 0.0000000000 0.0000000000 -38.6480000000
4 0.0000000000 0.0000000000 10.8910000000
5 - - -
6 0.0000000000 0.0000000000 65.0940000000
7 0.0000000000 0.0000000000 -22.1620000000
8 - - -
ELEMENT VOLUME DATA:
For centered elements with plane or spherical circular faces, exact
volumes are computed by assuming edges are squared up to the larger
of the front and back radial aperture.
For all other elements, approximate volumes are numerically integrated
to 0.1% accuracy. Zero volume means the volume cannot be accurately computed.
Single elements that are duplicated in the Lens Data Editor
for ray tracing purposes may be listed more than once yielding
incorrect total mass estimates.
Volume cc Density g/cc Mass g
Element surf 1 to 2 0.309782 3.580000 1.109020
Element surf 3 to 4 0.174760 3.760000 0.657099
Element surf 6 to 7 0.308559 3.580000 1.104642
Total Mass: 2.870761
F/# DATA:
F/# calculations consider vignetting factors and ignore surface apertures.
Wavelength: 0.486133 0.587562 0.656273
# Field Tan Sag Tan Sag Tan Sag
1 0.00 deg: 3.9897 3.9897 3.9819 3.9819 3.9819 3.9819
2 16.00 deg: 4.3068 4.1177 4.3010 4.1092 4.3021 4.1091
3 22.00 deg: 4.5613 4.2630 4.5660 4.2542 4.5715 4.2541
CARDINAL POINTS:
Object space positions are measured with respect to surface 1.
Image space positions are measured with respect to the image surface.
The index in both the object space and image space is considered.
Object Space Image Space
W = 0.486133
Focal Length : -50.021092 50.021092
Focal Planes : -39.847648 0.251183
Principal Planes : 10.173444 -49.769909
Anti-Principal Planes : -89.868741 50.272276
Nodal Planes : 10.173444 -49.769909
Anti-Nodal Planes : -89.868741 50.272276
W = 0.587562 (Primary)
Focal Length : -49.999292 49.999292
Focal Planes : -39.858278 0.229993
Principal Planes : 10.141014 -49.769299
Anti-Principal Planes : -89.857570 50.229285
Nodal Planes : 10.141014 -49.769299
Anti-Nodal Planes : -89.857570 50.229285
W = 0.656273
Focal Length : -50.027261 50.027261
Focal Planes : -39.899757 0.259060
Principal Planes : 10.127503 -49.768201
Anti-Principal Planes : -89.927018 50.286321
Nodal Planes : 10.127503 -49.768201
Anti-Nodal Planes : -89.927018 50.286321
Listing of Aberration Coefficient Data
File : Z:\eop601_summer2009\triplet\kidger.ZMX
Title: Kidger triplet
Date : THU MAY 28 2009
Wavelength : 0.5876 µm
Chief Ray Slope, Object Space : 0.4040
Chief Ray Slope, Image Space : 0.4155
Marginal Ray Slope, Object Space: 0.0000
Marginal Ray Slope, Image Space : -0.1250
Petzval radius : -113.7582
Optical Invariant : 2.5252
Seidel Aberration Coefficients:
Surf SPHA S1 COMA S2 ASTI S3 FCUR S4 DIST S5 CLA (CL) CTR (CT)
1 0.055947 0.025502 0.011624 0.131193 0.065098 -0.013323 -0.006073
2 0.025235 -0.073516 0.214173 -0.005296 -0.608521 -0.007056 0.020557
3 -0.106592 0.171695 -0.276563 -0.082840 0.578917 0.019603 -0.031575
4 -0.055010 -0.080247 -0.117062 -0.133282 -0.365196 0.017510 0.025543
STO -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000
6 0.006747 0.025133 0.093618 0.036118 0.483252 -0.004814 -0.017933
7 0.090727 -0.072450 0.057856 0.110160 -0.134170 -0.011981 0.009568
IMA 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
TOT 0.017055 -0.003883 -0.016353 0.056053 0.019380 -0.000062 0.000088
Seidel Aberration Coefficients in Waves:
Surf W040 W131 W222 W220P W311 W020 W111
1 11.902450 21.701128 9.891638 55.820848 55.396375 -11.337563 -10.335599
2 5.368491 -62.560036 182.255965 -2.253459 -517.835766 -6.004822 34.987657
3 -22.676661 146.108209 -235.347798 -35.247181 492.643631 16.681236 -53.739515
4 -11.702949 -68.287834 -99.616522 -56.709977 -310.772086 14.900659 43.473391
STO -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000
6 1.435460 21.387684 79.666620 15.367786 411.235254 -4.096819 -30.520340
7 19.301514 -61.653392 49.233713 46.871679 -114.175261 -10.195522 16.283400
IMA 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
TOT 3.628305 -3.304241 -13.916382 23.849697 16.492147 -0.052830 0.148994
Transverse Aberration Coefficients:
Surf TSPH TSCO TTCO TAST TPFC TSFC TTFC TDIS TAXC TLAC
1 0.134250 0.061193 0.183578 0.055785 0.314807 0.342699 0.398484 0.156207 0.063939 0.029144
2 0.062963 -0.183431 -0.550292 1.068776 -0.013215 0.521173 1.589950 -1.518333 0.035213 -0.102586
3 -0.553277 0.891206 2.673619 -2.871070 -0.429990 -1.865525 -4.736595 3.004945 -0.203499 0.327791
4 0.398104 0.580744 1.742231 1.694347 0.964563 1.811736 3.506084 2.642914 0.253441 0.369713
STO 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 -0.000000 -0.000000
6 -0.157694 -0.587392 -1.762175 -4.375930 -0.844122 -3.032087 -7.408018 -11.294171 -0.225030 -0.838211
7 0.362901 -0.289797 -0.869392 0.462839 0.440634 0.672053 1.134892 -0.536673 0.095847 -0.076539
IMA 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 -0.000000 -0.000000
TOT 0.068218 -0.015531 -0.046594 -0.130826 0.224208 0.158795 0.027969 0.077520 0.000497 -0.000700
Longitudinal Aberration Coefficients:
Surf LSPH LSCO LTCO LAST LPFC LSFC LTFC LDIS LAXC LLAC
1 1.044007 0.475871 1.427613 0.433816 2.448124 2.665032 3.098847 1.214754 -0.497229 -0.226643
2 0.314202 -0.915363 -2.746090 5.333451 -0.065944 2.600781 7.934232 -7.576848 -0.175722 0.511931
3 -9.398778 15.139339 45.418016 -48.772209 -7.304436 -31.690540 -80.462749 51.046405 3.456929 -5.568344
4 -5.762141 -8.405662 -25.216985 -24.523922 -13.961048 -26.223009 -50.746932 -38.253446 3.668293 5.351211
STO -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000 -0.000000
6 11.944019 44.490074 133.470222 331.440642 63.935297 229.655617 561.096259 855.440308 -17.044179 -63.487574
7 2.903171 -2.318346 -6.955037 3.702660 3.525021 5.376351 9.079011 -4.293320 -0.766762 0.612303
IMA 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
TOT 0.545739 -0.124249 -0.372747 -1.046592 1.793635 1.270339 0.223746 0.620152 -0.003973 0.005603
Wavefront Aberration Coefficient Summary:
W040 W131 W222 W220P W311 W020 W111
TOT 3.6283 -3.3042 -13.9164 23.8497 16.4921 -0.0528 0.1490
W220S W220M W220T
TOT 16.8915 9.9333 2.9751

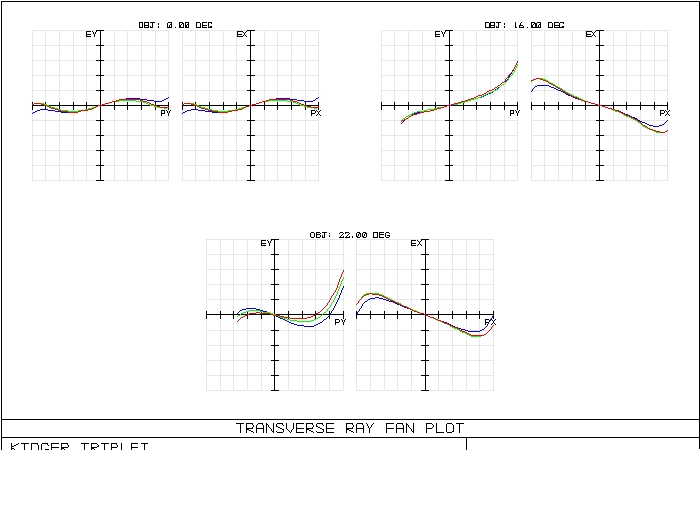

Listing of Ray Fan Data File : Z:\eop601_summer2009\triplet\kidger.ZMX Title: Kidger triplet Date : THU MAY 28 2009 Surface: Image Units are µm. Aberration data is measured in image plane local coordinates. Tangential data is y aberration as a function of Py. Sagittal data is x aberration as a function of Px. Tangential fan, field number 1 = 0.00 deg Pupil 0.486133 0.587562 0.656273 -1.000 -10.613884 2.006744 2.070375 -0.950 -7.695053 3.122907 2.747193 -0.900 -6.170512 3.081503 2.355453 -0.850 -5.624333 2.267805 1.268661 -0.800 -5.728542 0.983567 -0.221455 -0.750 -6.226344 -0.536980 -1.889274 -0.700 -6.918797 -2.114446 -3.562831 -0.650 -7.654155 -3.614130 -5.113881 -0.600 -8.319306 -4.937877 -6.449912 -0.550 -8.832837 -6.017487 -7.507689 -0.500 -9.139398 -6.809356 -8.248010 -0.450 -9.205080 -7.290098 -8.651412 -0.400 -9.013618 -7.452937 -8.714648 -0.350 -8.563232 -7.304723 -8.447764 -0.300 -7.863989 -6.863438 -7.871662 -0.250 -6.935586 -6.156097 -7.016048 -0.200 -5.805445 -5.216961 -5.917691 -0.150 -4.507082 -4.085997 -4.618916 -0.100 -3.078666 -2.807528 -3.166291 -0.050 -1.561732 -1.429024 -1.609445 0.000 -0.000000 -0.000000 -0.000000 0.050 1.561732 1.429024 1.609445 0.100 3.078666 2.807528 3.166291 0.150 4.507082 4.085997 4.618916 0.200 5.805445 5.216961 5.917691 0.250 6.935586 6.156097 7.016048 0.300 7.863989 6.863438 7.871662 0.350 8.563232 7.304723 8.447764 0.400 9.013618 7.452937 8.714648 0.450 9.205080 7.290098 8.651412 0.500 9.139398 6.809356 8.248010 0.550 8.832837 6.017487 7.507689 0.600 8.319306 4.937877 6.449912 0.650 7.654155 3.614130 5.113881 0.700 6.918797 2.114446 3.562831 0.750 6.226344 0.536980 1.889274 0.800 5.728542 -0.983567 0.221455 0.850 5.624333 -2.267805 -1.268661 0.900 6.170512 -3.081503 -2.355453 0.950 7.695053 -3.122907 -2.747193 1.000 10.613884 -2.006744 -2.070375 Sagittal fan, field number 1 = 0.00 deg Pupil 0.486133 0.587562 0.656273 -1.000 -10.613884 2.006744 2.070375 -0.950 -7.695053 3.122907 2.747193 -0.900 -6.170512 3.081503 2.355453 -0.850 -5.624333 2.267805 1.268661 -0.800 -5.728542 0.983567 -0.221455 -0.750 -6.226344 -0.536980 -1.889274 -0.700 -6.918797 -2.114446 -3.562831 -0.650 -7.654155 -3.614130 -5.113881 -0.600 -8.319306 -4.937877 -6.449912 -0.550 -8.832837 -6.017487 -7.507689 -0.500 -9.139398 -6.809356 -8.248010 -0.450 -9.205080 -7.290098 -8.651412 -0.400 -9.013618 -7.452937 -8.714648 -0.350 -8.563232 -7.304723 -8.447764 -0.300 -7.863989 -6.863438 -7.871662 -0.250 -6.935586 -6.156097 -7.016048 -0.200 -5.805445 -5.216961 -5.917691 -0.150 -4.507082 -4.085997 -4.618916 -0.100 -3.078666 -2.807528 -3.166291 -0.050 -1.561732 -1.429024 -1.609445 0.000 -0.000000 -0.000000 -0.000000 0.050 1.561732 1.429024 1.609445 0.100 3.078666 2.807528 3.166291 0.150 4.507082 4.085997 4.618916 0.200 5.805445 5.216961 5.917691 0.250 6.935586 6.156097 7.016048 0.300 7.863989 6.863438 7.871662 0.350 8.563232 7.304723 8.447764 0.400 9.013618 7.452937 8.714648 0.450 9.205080 7.290098 8.651412 0.500 9.139398 6.809356 8.248010 0.550 8.832837 6.017487 7.507689 0.600 8.319306 4.937877 6.449912 0.650 7.654155 3.614130 5.113881 0.700 6.918797 2.114446 3.562831 0.750 6.226344 0.536980 1.889274 0.800 5.728542 -0.983567 0.221455 0.850 5.624333 -2.267805 -1.268661 0.900 6.170512 -3.081503 -2.355453 0.950 7.695053 -3.122907 -2.747193 1.000 10.613884 -2.006744 -2.070375 Tangential fan, field number 2 = 16.00 deg Pupil 0.486133 0.587562 0.656273 -1.000--------------------------------------------- -0.950--------------------------------------------- -0.900--------------------------------------------- -0.850--------------------------------------------- -0.800--------------------------------------------- -0.750--------------------------------------------- -0.700 -23.056291 -19.101995 -21.676723 -0.650 -18.854138 -15.738192 -18.364288 -0.600 -15.562487 -13.146184 -15.772703 -0.550 -12.971846 -11.133919 -13.716539 -0.500 -10.913306 -9.547724 -12.047884 -0.450 -9.251228 -8.265343 -10.649528 -0.400 -7.877322 -7.190322 -9.429457 -0.350 -6.705825 -6.247426 -8.316370 -0.300 -5.669528 -5.378879 -7.256000 -0.250 -4.716483 -4.541240 -6.208057 -0.200 -3.807232 -3.702784 -5.143666 -0.150 -2.912455 -2.841279 -4.043195 -0.100 -2.010951 -1.942071 -2.894383 -0.050 -1.087864 -0.996418 -1.690711 0.000 -0.133118 -0.000000 -0.429944 0.050 0.860017 1.048425 0.887178 0.100 1.896240 2.148271 2.258169 0.150 2.979485 3.298317 3.679955 0.200 4.114141 4.497864 5.150017 0.250 5.306285 5.747907 6.667526 0.300 6.564949 7.052328 8.234522 0.350 7.903449 8.419168 9.857156 0.400 9.340827 9.861996 11.547031 0.450 10.903429 11.401411 13.322679 0.500 12.626677 13.066732 15.211218 0.550 14.557076 14.897917 17.250233 0.600 16.754524 16.947766 19.489948 0.650 19.294999 19.284492 21.995740 0.700 22.273704 21.994729 24.851106 0.750 25.808792 25.187095 28.161153 0.800 30.045801 28.996434 32.056777 0.850 35.162968 33.588907 36.699660 0.900 41.377652 39.168135 42.288304 0.950 48.954127 45.982661 49.065373 1.000 58.213121 54.335075 57.326645 Sagittal fan, field number 2 = 16.00 deg Pupil 0.486133 0.587562 0.656273 -1.000 19.140355 32.561113 32.824976 -0.950 23.714122 35.266699 35.071473 -0.900 26.236803 36.163433 35.600251 -0.850 27.216146 35.727570 34.875468 -0.800 27.057351 34.337408 33.265126 -0.750 26.082666 32.292056 31.059508 -0.700 24.546906 29.826304 28.485789 -0.650 22.649858 27.122488 25.719695 -0.600 20.546235 24.320017 22.894860 -0.550 18.353729 21.523076 20.110388 -0.500 16.159567 18.806886 17.436999 -0.450 14.025874 16.222824 14.922059 -0.400 11.994095 13.802643 12.593718 -0.350 10.088670 11.561974 10.464341 -0.300 8.320105 9.503248 8.533379 -0.250 6.687573 7.618169 6.789789 -0.200 5.181130 5.889822 5.214097 -0.150 3.783642 4.294492 3.780180 -0.100 2.472469 2.803266 2.456840 -0.050 1.220992 1.383474 1.209201 0.000 -0.000000 -0.000000 -0.000000 0.050 -1.220992 -1.383474 -1.209201 0.100 -2.472469 -2.803266 -2.456840 0.150 -3.783642 -4.294492 -3.780180 0.200 -5.181130 -5.889822 -5.214097 0.250 -6.687573 -7.618169 -6.789789 0.300 -8.320105 -9.503248 -8.533379 0.350 -10.088670 -11.561974 -10.464341 0.400 -11.994095 -13.802643 -12.593718 0.450 -14.025874 -16.222824 -14.922059 0.500 -16.159567 -18.806886 -17.436999 0.550 -18.353729 -21.523076 -20.110388 0.600 -20.546235 -24.320017 -22.894860 0.650 -22.649858 -27.122488 -25.719695 0.700 -24.546906 -29.826304 -28.485789 0.750 -26.082666 -32.292056 -31.059508 0.800 -27.057351 -34.337408 -33.265126 0.850 -27.216146 -35.727570 -34.875468 0.900 -26.236803 -36.163433 -35.600251 0.950 -23.714122 -35.266699 -35.071473 1.000 -19.140355 -32.561113 -32.824976 Tangential fan, field number 3 = 22.00 deg Pupil 0.486133 0.587562 0.656273 -1.000--------------------------------------------- -0.950--------------------------------------------- -0.900--------------------------------------------- -0.850--------------------------------------------- -0.800--------------------------------------------- -0.750--------------------------------------------- -0.700--------------------------------------------- -0.650--------------------------------------------- -0.600--------------------------------------------- -0.550 2.438727 -2.606068 -8.166611 -0.500 5.537343 0.847009 -4.283533 -0.450 7.530021 3.244872 -1.438952 -0.400 8.602689 4.766812 0.543975 -0.350 8.914473 5.566055 1.816320 -0.300 8.602008 5.773976 2.507557 -0.250 7.783073 5.503634 2.729062 -0.200 6.559675 4.852789 2.577098 -0.150 5.020708 3.906484 2.135368 -0.100 3.244259 2.739298 1.477249 -0.050 1.299648 1.417335 0.667753 0.000 -0.750742 -0.000000 -0.234708 0.050 -2.849807 -1.458377 -1.176718 0.100 -4.944175 -2.907035 -2.108361 0.150 -6.982743 -4.297352 -2.981815 0.200 -8.915267 -5.581466 -3.749974 0.250 -10.690957 -6.710904 -4.365093 0.300 -12.257066 -7.635197 -4.777414 0.350 -13.557426 -8.300442 -4.933739 0.400 -14.530902 -8.647788 -4.775926 0.450 -15.109735 -8.611804 -4.239270 0.500 -15.217721 -8.118688 -3.250720 0.550 -14.768195 -7.084280 -1.726904 0.600 -13.661759 -5.411822 0.428099 0.650 -11.783690 -2.989395 3.325304 0.700 -9.000967 0.313014 7.093746 0.750 -5.158809 4.646948 11.883896 0.800 -0.076630 10.189478 17.871648 0.850 6.456732 17.147948 25.263042 0.900 14.688684 25.765604 34.299876 0.950 24.909637 36.328331 45.266432 1.000 37.461151 49.172780 58.497584 Sagittal fan, field number 3 = 22.00 deg Pupil 0.486133 0.587562 0.656273 -1.000 0.066757 13.808458 14.139665 -0.950 8.896711 20.770332 20.645323 -0.900 15.007086 25.251176 24.759650 -0.850 18.993387 27.815600 27.035398 -0.800 21.335328 28.916911 27.915769 -0.750 22.418936 28.918407 27.755396 -0.700 22.554056 28.110244 26.836952 -0.650 21.988307 26.722877 25.384392 -0.600 20.918300 24.937850 23.573576 -0.550 19.498699 22.896520 21.540861 -0.500 17.849605 20.707152 19.390075 -0.450 16.062598 18.450723 17.198242 -0.400 14.205727 16.185719 15.020289 -0.350 12.327662 13.952107 12.892965 -0.300 10.461170 11.774677 10.838111 -0.250 8.626059 9.665853 8.865439 -0.200 6.831704 7.628113 6.974898 -0.150 5.079233 5.656077 5.158727 -0.100 3.363462 3.738352 3.403271 -0.050 1.674630 1.859187 1.690597 0.000 -0.000000 -0.000000 -0.000000 0.050 -1.674630 -1.859187 -1.690597 0.100 -3.363462 -3.738352 -3.403271 0.150 -5.079233 -5.656077 -5.158727 0.200 -6.831704 -7.628113 -6.974898 0.250 -8.626059 -9.665853 -8.865439 0.300 -10.461170 -11.774677 -10.838111 0.350 -12.327662 -13.952107 -12.892965 0.400 -14.205727 -16.185719 -15.020289 0.450 -16.062598 -18.450723 -17.198242 0.500 -17.849605 -20.707152 -19.390075 0.550 -19.498699 -22.896520 -21.540861 0.600 -20.918300 -24.937850 -23.573576 0.650 -21.988307 -26.722877 -25.384392 0.700 -22.554056 -28.110244 -26.836952 0.750 -22.418936 -28.918407 -27.755396 0.800 -21.335328 -28.916911 -27.915769 0.850 -18.993387 -27.815600 -27.035398 0.900 -15.007086 -25.251176 -24.759650 0.950 -8.896711 -20.770332 -20.645323 1.000 -0.066757 -13.808458 -14.139665

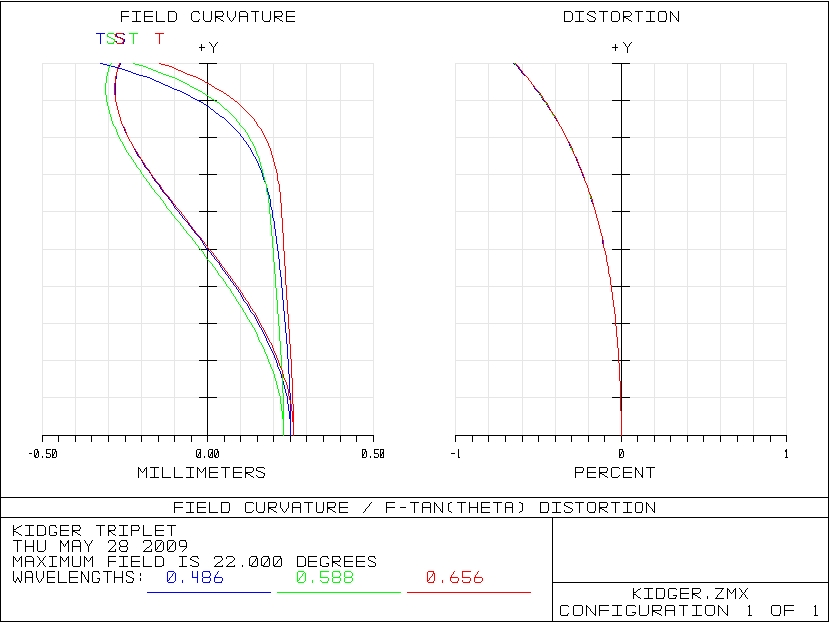

Listing of Field Curvature Data
File : Z:\eop601_summer2009\triplet\kidger.ZMX
Title: Kidger triplet
Date : THU MAY 28 2009
Distortion Type: F-Tan(Theta)
Shift units are Millimeters.
Height units are Millimeters.
Distortion units are percent.
Maximum Field is 22.000 Degrees.
Data for wavelength : 0.486133 µm.
Distortion focal length = 49.76296
Y Angle (deg) Tan Shift Sag Shift Real Height Ref. Height Distortion
0.00000000 0.25118278 0.25118278 0.00000000 0.00000000 0.00000000 %
0.22000000 0.25116451 0.25106889 0.19107691 0.19107698 -0.00003381 %
0.44000000 0.25110340 0.25072727 0.38215907 0.38215959 -0.00013529 %
0.66000000 0.25099959 0.25015811 0.57325172 0.57325347 -0.00030451 %
0.88000000 0.25085326 0.24936173 0.76436012 0.76436426 -0.00054164 %
1.10000000 0.25066469 0.24833856 0.95548950 0.95549759 -0.00084689 %
1.32000000 0.25043423 0.24708917 1.14664511 1.14665910 -0.00122054 %
1.54000000 0.25016232 0.24561423 1.33783220 1.33785445 -0.00166293 %
1.76000000 0.24984945 0.24391458 1.52905603 1.52908928 -0.00217446 %
1.98000000 0.24949620 0.24199114 1.72032183 1.72036923 -0.00275559 %
2.20000000 0.24910321 0.23984499 1.91163485 1.91169998 -0.00340685 %
2.42000000 0.24867121 0.23747731 2.10300034 2.10308718 -0.00412884 %
2.64000000 0.24820096 0.23488944 2.29442356 2.29453650 -0.00492220 %
2.86000000 0.24769333 0.23208282 2.48590975 2.48605363 -0.00578764 %
3.08000000 0.24714919 0.22905903 2.67746415 2.67764425 -0.00672595 %
3.30000000 0.24656952 0.22581978 2.86909202 2.86931405 -0.00773797 %
3.52000000 0.24595532 0.22236692 3.06079861 3.06106874 -0.00882460 %
3.74000000 0.24530764 0.21870240 3.25258918 3.25291404 -0.00998682 %
3.96000000 0.24462758 0.21482835 3.44446896 3.44485566 -0.01122566 %
4.18000000 0.24391627 0.21074698 3.63644321 3.63689936 -0.01254221 %
4.40000000 0.24317487 0.20646069 3.82851718 3.82905086 -0.01393766 %
4.62000000 0.24240458 0.20197197 4.02069613 4.02131595 -0.01541323 %
4.84000000 0.24160658 0.19728347 4.21298531 4.21370038 -0.01697021 %
5.06000000 0.24078211 0.19239798 4.40538996 4.40620996 -0.01860999 %
5.28000000 0.23993238 0.18731841 4.59791535 4.59885048 -0.02033398 %
5.50000000 0.23905861 0.18204783 4.79056673 4.79162777 -0.02214370 %
5.72000000 0.23816199 0.17658946 4.98334934 4.98454766 -0.02404071 %
5.94000000 0.23724371 0.17094663 5.17626844 5.17761600 -0.02602666 %
6.16000000 0.23630492 0.16512284 5.36932930 5.37083868 -0.02810326 %
6.38000000 0.23534671 0.15912175 5.56253715 5.56422156 -0.03027230 %
6.60000000 0.23437016 0.15294714 5.75589725 5.75777058 -0.03253562 %
6.82000000 0.23337623 0.14660295 5.94941486 5.95149164 -0.03489516 %
7.04000000 0.23236585 0.14009330 6.14309523 6.14539071 -0.03735292 %
7.26000000 0.23133983 0.13342243 6.33694361 6.33947376 -0.03991098 %
7.48000000 0.23029889 0.12659476 6.53096526 6.53374677 -0.04257149 %
7.70000000 0.22924364 0.11961485 6.72516542 6.72821577 -0.04533668 %
7.92000000 0.22817452 0.11248745 6.91954934 6.92288679 -0.04820886 %
8.14000000 0.22709186 0.10521746 7.11412228 7.11776589 -0.05119042 %
8.36000000 0.22599580 0.09780994 7.30888948 7.31285918 -0.05428382 %
8.58000000 0.22488629 0.09027013 7.50385618 7.50817275 -0.05749162 %
8.80000000 0.22376309 0.08260345 7.69902764 7.70371277 -0.06081644 %
9.02000000 0.22262572 0.07481549 7.89440910 7.89948539 -0.06426101 %
9.24000000 0.22147345 0.06691201 8.09000578 8.09549681 -0.06782812 %
9.46000000 0.22030529 0.05889897 8.28582294 8.29175326 -0.07152067 %
9.68000000 0.21911993 0.05078250 8.48186581 8.48826100 -0.07534165 %
9.90000000 0.21791575 0.04256895 8.67813961 8.68502633 -0.07929411 %
10.12000000 0.21669077 0.03426482 8.87464958 8.88205555 -0.08338123 %
10.34000000 0.21544266 0.02587684 9.07140093 9.07935502 -0.08760627 %
10.56000000 0.21416863 0.01741193 9.26839889 9.27693113 -0.09197259 %
10.78000000 0.21286549 0.00887722 9.46564867 9.47479029 -0.09648363 %
11.00000000 0.21152953 0.00028005 9.66315548 9.67293897 -0.10114297 %
11.22000000 0.21015655 -0.00837204 9.86092451 9.87138366 -0.10595427 %
11.44000000 0.20874179 -0.01707126 10.05896096 10.07013088 -0.11092129 %
11.66000000 0.20727990 -0.02580962 10.25727002 10.26918720 -0.11604793 %
11.88000000 0.20576487 -0.03457889 10.45585687 10.46855923 -0.12133817 %
12.10000000 0.20419003 -0.04337062 10.65472667 10.66825361 -0.12679614 %
12.32000000 0.20254795 -0.05217609 10.85388459 10.86827702 -0.13242606 %
12.54000000 0.20083042 -0.06098637 11.05333576 11.06863619 -0.13823230 %
12.76000000 0.19902841 -0.06979224 11.25308534 11.26933790 -0.14421933 %
12.98000000 0.19713197 -0.07858425 11.45313843 11.47038895 -0.15039178 %
13.20000000 0.19513019 -0.08735266 11.65350015 11.67179620 -0.15675441 %
13.42000000 0.19301114 -0.09608748 11.85417558 11.87356656 -0.16331211 %
13.64000000 0.19076180 -0.10477844 12.05516982 12.07570696 -0.17006993 %
13.86000000 0.18836798 -0.11341495 12.25648790 12.27822442 -0.17703306 %
14.08000000 0.18581425 -0.12198615 12.45813487 12.48112596 -0.18420687 %
14.30000000 0.18308384 -0.13048089 12.66011574 12.68441870 -0.19159689 %
14.52000000 0.18015859 -0.13888768 12.86243551 12.88810976 -0.19920881 %
14.74000000 0.17701884 -0.14719471 13.06509913 13.09220635 -0.20704850 %
14.96000000 0.17364330 -0.15538985 13.26811155 13.29671571 -0.21512205 %
15.18000000 0.17000901 -0.16346064 13.47147766 13.50164516 -0.22343572 %
15.40000000 0.16609121 -0.17139424 13.67520234 13.70700203 -0.23199597 %
15.62000000 0.16186317 -0.17917746 13.87929043 13.91279376 -0.24080952 %
15.84000000 0.15729617 -0.18679675 14.08374671 14.11902780 -0.24988327 %
16.06000000 0.15235928 -0.19423816 14.28857595 14.32571169 -0.25922440 %
16.28000000 0.14701929 -0.20148734 14.49378285 14.53285302 -0.26884032 %
16.50000000 0.14124051 -0.20852953 14.69937206 14.74045943 -0.27873873 %
16.72000000 0.13498467 -0.21534955 14.90534817 14.94853863 -0.28892761 %
16.94000000 0.12821072 -0.22193178 15.11171574 15.15709840 -0.29941522 %
17.16000000 0.12087469 -0.22826014 15.31847922 15.36614657 -0.31021017 %
17.38000000 0.11292949 -0.23431808 15.52564303 15.57569106 -0.32132140 %
17.60000000 0.10432473 -0.24008857 15.73321148 15.78573982 -0.33275822 %
17.82000000 0.09500650 -0.24555407 15.94118880 15.99630091 -0.34453030 %
18.04000000 0.08491720 -0.25069651 16.14957915 16.20738242 -0.35664776 %
18.26000000 0.07399526 -0.25549729 16.35838657 16.41899254 -0.36912113 %
18.48000000 0.06217494 -0.25993723 16.56761497 16.63113951 -0.38196144 %
18.70000000 0.04938608 -0.26399657 16.77726819 16.84383167 -0.39518019 %
18.92000000 0.03555381 -0.26765496 16.98734988 17.05707742 -0.40878947 %
19.14000000 0.02059828 -0.27089139 17.19786359 17.27088522 -0.42280190 %
19.36000000 0.00443440 -0.27368421 17.40881269 17.48526364 -0.43723077 %
19.58000000 -0.01302854 -0.27601109 17.62020037 17.70022131 -0.45209003 %
19.80000000 -0.03188714 -0.27784896 17.83202965 17.91576694 -0.46739436 %
20.02000000 -0.05224426 -0.27917405 18.04430334 18.13190933 -0.48315923 %
20.24000000 -0.07420941 -0.27996179 18.25702400 18.34865737 -0.49940096 %
20.46000000 -0.09789906 -0.28018680 18.47019396 18.56602002 -0.51613680 %
20.68000000 -0.12343714 -0.27982289 18.68381527 18.78400634 -0.53338501 %
20.90000000 -0.15095538 -0.27884296 18.89788967 19.00262547 -0.55116490 %
21.12000000 -0.18059382 -0.27721901 19.11241857 19.22188664 -0.56949702 %
21.34000000 -0.21250125 -0.27492209 19.32740302 19.44179918 -0.58840315 %
21.56000000 -0.24683571 -0.27192223 19.54284367 19.66237251 -0.60790652 %
21.78000000 -0.28376498 -0.26818845 19.75874071 19.88361616 -0.62803187 %
22.00000000 -0.32346719 -0.26368864 19.97509385 20.10553972 -0.64880560 %
Data for wavelength : 0.587562 µm.
Distortion focal length = 49.76278
Y Angle (deg) Tan Shift Sag Shift Real Height Ref. Height Distortion
0.00000000 0.22999260 0.22999260 0.00000000 0.00000000 0.00000000 %
0.22000000 0.22997593 0.22987786 0.19107624 0.19107630 -0.00003354 %
0.44000000 0.22991891 0.22953373 0.38215773 0.38215824 -0.00013417 %
0.66000000 0.22982165 0.22896039 0.57324971 0.57325145 -0.00030200 %
0.88000000 0.22968440 0.22815815 0.76435745 0.76436156 -0.00053718 %
1.10000000 0.22950749 0.22712745 0.95548619 0.95549421 -0.00083993 %
1.32000000 0.22929132 0.22586885 1.14664117 1.14665505 -0.00121052 %
1.54000000 0.22903640 0.22438304 1.33782766 1.33784973 -0.00164929 %
1.76000000 0.22874334 0.22267083 1.52905090 1.52908388 -0.00215666 %
1.98000000 0.22841281 0.22073318 1.72031614 1.72036316 -0.00273308 %
2.20000000 0.22804559 0.21857114 1.91162863 1.91169323 -0.00337909 %
2.42000000 0.22764253 0.21618591 2.10299362 2.10307975 -0.00409528 %
2.64000000 0.22720456 0.21357882 2.29441637 2.29452840 -0.00488230 %
2.86000000 0.22673271 0.21075132 2.48590213 2.48604485 -0.00574087 %
3.08000000 0.22622805 0.20770499 2.67745614 2.67763479 -0.00667177 %
3.30000000 0.22569174 0.20444154 2.86908367 2.86930392 -0.00767585 %
3.52000000 0.22512502 0.20096281 3.06078996 3.06105793 -0.00875403 %
3.74000000 0.22452916 0.19727079 3.25258028 3.25290255 -0.00990727 %
3.96000000 0.22390553 0.19336757 3.44445986 3.44484350 -0.01113661 %
4.18000000 0.22325552 0.18925539 3.63643397 3.63688651 -0.01244317 %
4.40000000 0.22258058 0.18493664 3.82850786 3.82903734 -0.01382811 %
4.62000000 0.22188222 0.18041382 4.02068678 4.02130174 -0.01529267 %
4.84000000 0.22116196 0.17568959 4.21297599 4.21368550 -0.01683816 %
5.06000000 0.22042136 0.17076672 4.40538075 4.40619440 -0.01846594 %
5.28000000 0.21966202 0.16564815 4.59790631 4.59883424 -0.02017747 %
5.50000000 0.21888554 0.16033694 4.79055792 4.79161085 -0.02197425 %
5.72000000 0.21809352 0.15483630 4.98334085 4.98453005 -0.02385785 %
5.94000000 0.21728759 0.14914960 5.17626035 5.17759772 -0.02582993 %
6.16000000 0.21646934 0.14328033 5.36932167 5.37081971 -0.02789221 %
6.38000000 0.21564037 0.13723214 5.56253007 5.56420191 -0.03004647 %
6.60000000 0.21480221 0.13100882 5.75589080 5.75775024 -0.03229458 %
6.82000000 0.21395641 0.12461434 5.94940913 5.95147062 -0.03463847 %
7.04000000 0.21310441 0.11805279 6.14309030 6.14536901 -0.03708016 %
7.26000000 0.21224763 0.11132844 6.33693957 6.33945137 -0.03962173 %
7.48000000 0.21138740 0.10444571 6.53096219 6.53372369 -0.04226533 %
7.70000000 0.21052495 0.09740916 6.72516343 6.72819200 -0.04501321 %
7.92000000 0.20966141 0.09022355 6.91954852 6.92286233 -0.04786769 %
8.14000000 0.20879781 0.08289379 7.11412272 7.11774075 -0.05083114 %
8.36000000 0.20793503 0.07542494 7.30889129 7.31283335 -0.05390606 %
8.58000000 0.20707379 0.06782226 7.50385946 7.50814624 -0.05709499 %
8.80000000 0.20621464 0.06009117 7.69903249 7.70368556 -0.06040058 %
9.02000000 0.20535797 0.05223725 7.89441561 7.89945748 -0.06382554 %
9.24000000 0.20450392 0.04426630 8.09001408 8.09546821 -0.06737268 %
9.46000000 0.20365241 0.03618427 8.28583313 8.29172397 -0.07104491 %
9.68000000 0.20280311 0.02799731 8.48187799 8.48823102 -0.07484520 %
9.90000000 0.20195541 0.01971176 8.67815390 8.68499565 -0.07877663 %
10.12000000 0.20110839 0.01133414 8.87466610 8.88202417 -0.08284236 %
10.34000000 0.20026079 0.00287119 9.07141979 9.07932295 -0.08704567 %
10.56000000 0.19941101 -0.00567016 9.26842021 9.27689836 -0.09138990 %
10.78000000 0.19855704 -0.01428277 9.46567257 9.47475683 -0.09587851 %
11.00000000 0.19769643 -0.02295929 9.66318208 9.67290481 -0.10051506 %
11.22000000 0.19682630 -0.03169217 9.86095395 9.87134879 -0.10530321 %
11.44000000 0.19594327 -0.04047361 10.05899336 10.07009531 -0.11024673 %
11.66000000 0.19504339 -0.04929561 10.25730552 10.26915093 -0.11534949 %
11.88000000 0.19412219 -0.05814993 10.45589560 10.46852225 -0.12061548 %
12.10000000 0.19317453 -0.06702809 10.65476877 10.66821593 -0.12604879 %
12.32000000 0.19219464 -0.07592139 10.85393020 10.86823863 -0.13165365 %
12.54000000 0.19117601 -0.08482085 11.05338504 11.06859710 -0.13743440 %
12.76000000 0.19011139 -0.09371727 11.25313843 11.26929810 -0.14339550 %
12.98000000 0.18899270 -0.10260116 11.45319550 11.47034844 -0.14954154 %
13.20000000 0.18781099 -0.11146279 11.65356137 11.67175498 -0.15587725 %
13.42000000 0.18655634 -0.12029215 11.85424112 11.87352462 -0.16240751 %
13.64000000 0.18521788 -0.12907893 12.05523986 12.07566431 -0.16913731 %
13.86000000 0.18378364 -0.13781256 12.25656263 12.27818105 -0.17607181 %
14.08000000 0.18224050 -0.14648216 12.45821450 12.48108188 -0.18321632 %
14.30000000 0.18057413 -0.15507654 12.66020048 12.68437389 -0.19057631 %
14.52000000 0.17876891 -0.16358421 12.86252558 12.88806424 -0.19815743 %
14.74000000 0.17680782 -0.17199335 13.06519478 13.09216011 -0.20596547 %
14.96000000 0.17467236 -0.18029181 13.26821302 13.29666875 -0.21400643 %
15.18000000 0.17234246 -0.18846710 13.47158524 13.50159747 -0.22228649 %
15.40000000 0.16979637 -0.19650638 13.67531632 13.70695362 -0.23081203 %
15.62000000 0.16701055 -0.20439644 13.87941112 13.91274462 -0.23958964 %
15.84000000 0.16395958 -0.21212370 14.08387447 14.11897793 -0.24862611 %
16.06000000 0.16061599 -0.21967419 14.28871113 14.32566109 -0.25792848 %
16.28000000 0.15695017 -0.22703356 14.49392586 14.53280169 -0.26750402 %
16.50000000 0.15293022 -0.23418702 14.69952333 14.74040736 -0.27736026 %
16.72000000 0.14852182 -0.24111938 14.90550819 14.94848583 -0.28750500 %
16.94000000 0.14368806 -0.24781499 15.11188501 15.15704486 -0.29794631 %
17.16000000 0.13838927 -0.25425775 15.31865831 15.36609230 -0.30869258 %
17.38000000 0.13258288 -0.26043110 15.52583256 15.57563605 -0.31975249 %
17.60000000 0.12622319 -0.26631798 15.73341213 15.78568407 -0.33113509 %
17.82000000 0.11926125 -0.27190083 15.94140132 15.99624441 -0.34284978 %
18.04000000 0.11164459 -0.27716157 16.14980435 16.20732518 -0.35490633 %
18.26000000 0.10331702 -0.28208156 16.35862535 16.41893455 -0.36731492 %
18.48000000 0.09421844 -0.28664161 16.56786833 16.63108077 -0.38008619 %
18.70000000 0.08428453 -0.29082195 16.77753721 16.84377218 -0.39323122 %
18.92000000 0.07344659 -0.29460219 16.98763577 17.05701717 -0.40676160 %
19.14000000 0.06163116 -0.29796130 17.19816768 17.27082422 -0.42068946 %
19.36000000 0.04875984 -0.30087761 17.40913644 17.48520188 -0.43502751 %
19.58000000 0.03474890 -0.30332877 17.62054541 17.70015879 -0.44978907 %
19.80000000 0.01950904 -0.30529168 17.83239776 17.91570366 -0.46498814 %
20.02000000 0.00294500 -0.30674255 18.04469650 18.13184529 -0.48063942 %
20.24000000 -0.01504477 -0.30765677 18.25744439 18.34859257 -0.49675841 %
20.46000000 -0.03456849 -0.30800896 18.47064400 18.56595445 -0.51336144 %
20.68000000 -0.05574145 -0.30777288 18.68429762 18.78394000 -0.53046576 %
20.90000000 -0.07868639 -0.30692140 18.89840730 19.00255835 -0.54808961 %
21.12000000 -0.10353398 -0.30542650 19.11297476 19.22181875 -0.56625230 %
21.34000000 -0.13042327 -0.30325919 19.32800139 19.44173051 -0.58497430 %
21.56000000 -0.15950215 -0.30038948 19.54348822 19.66230307 -0.60427735 %
21.78000000 -0.19092785 -0.29678632 19.75943590 19.88354593 -0.62418460 %
22.00000000 -0.22486754 -0.29241758 19.97584459 20.10546871 -0.64472067 %
Data for wavelength : 0.656273 µm.
Distortion focal length = 49.76079
Y Angle (deg) Tan Shift Sag Shift Real Height Ref. Height Distortion
0.00000000 0.25905964 0.25905964 0.00000000 0.00000000 0.00000000 %
0.22000000 0.25904392 0.25894457 0.19106861 0.19106867 -0.00003336 %
0.44000000 0.25898941 0.25859943 0.38214246 0.38214297 -0.00013348 %
0.66000000 0.25889626 0.25802440 0.57322682 0.57322854 -0.00030044 %
0.88000000 0.25876470 0.25721980 0.76432694 0.76433102 -0.00053441 %
1.10000000 0.25859509 0.25618607 0.95544806 0.95545604 -0.00083560 %
1.32000000 0.25838787 0.25492377 1.14659544 1.14660925 -0.00120428 %
1.54000000 0.25814358 0.25343359 1.33777433 1.33779628 -0.00164081 %
1.76000000 0.25786286 0.25171634 1.52898998 1.52902279 -0.00214558 %
1.98000000 0.25754642 0.24977297 1.72024765 1.72029443 -0.00271906 %
2.20000000 0.25719511 0.24760456 1.91155259 1.91161686 -0.00336178 %
2.42000000 0.25680981 0.24521229 2.10291005 2.10299573 -0.00407434 %
2.64000000 0.25639154 0.24259749 2.29432528 2.29443673 -0.00485738 %
2.86000000 0.25594137 0.23976162 2.48580355 2.48594553 -0.00571163 %
3.08000000 0.25546047 0.23670626 2.67735009 2.67752782 -0.00663787 %
3.30000000 0.25495008 0.23343312 2.86897017 2.86918929 -0.00763694 %
3.52000000 0.25441152 0.22994406 3.06066905 3.06093565 -0.00870976 %
3.74000000 0.25384617 0.22624104 3.25245196 3.25277260 -0.00985730 %
3.96000000 0.25325547 0.22232617 3.44432419 3.44470588 -0.01108060 %
4.18000000 0.25264096 0.21820171 3.63629097 3.63674122 -0.01238077 %
4.40000000 0.25200419 0.21387002 3.82835756 3.82888437 -0.01375899 %
4.62000000 0.25134679 0.20933363 4.02052922 4.02114110 -0.01521648 %
4.84000000 0.25067042 0.20459518 4.21281121 4.21351717 -0.01675455 %
5.06000000 0.24997678 0.19965747 4.40520879 4.40601837 -0.01837458 %
5.28000000 0.24926762 0.19452343 4.59772720 4.59865052 -0.02007801 %
5.50000000 0.24854469 0.18919612 4.79037172 4.79141943 -0.02186635 %
5.72000000 0.24780978 0.18367877 4.98314759 4.98433093 -0.02374117 %
5.94000000 0.24706466 0.17797473 5.17606008 5.17739088 -0.02570413 %
6.16000000 0.24631113 0.17208751 5.36911443 5.37060515 -0.02775694 %
6.38000000 0.24555097 0.16602077 5.56231592 5.56397963 -0.02990139 %
6.60000000 0.24478594 0.15977830 5.75566980 5.75752023 -0.03213935 %
6.82000000 0.24401776 0.15336407 5.94918132 5.95123287 -0.03447275 %
7.04000000 0.24324814 0.14678218 6.14285574 6.14512351 -0.03690360 %
7.26000000 0.24247871 0.14003690 6.33669832 6.33919812 -0.03943398 %
7.48000000 0.24171104 0.13313266 6.53071431 6.53346268 -0.04206606 %
7.70000000 0.24094664 0.12607403 6.72490897 6.72792322 -0.04480206 %
7.92000000 0.24018691 0.11886578 6.91928756 6.92258578 -0.04764431 %
8.14000000 0.23943315 0.11151281 7.11385532 7.11745641 -0.05059520 %
8.36000000 0.23868653 0.10402020 7.30861751 7.31254121 -0.05365719 %
8.58000000 0.23794811 0.09639321 7.50357937 7.50784630 -0.05683285 %
8.80000000 0.23721875 0.08863727 7.69874616 7.70337781 -0.06012481 %
9.02000000 0.23649916 0.08075798 7.89412313 7.89914191 -0.06353579 %
9.24000000 0.23578986 0.07276113 8.08971551 8.09514481 -0.06706859 %
9.46000000 0.23509114 0.06465269 8.28552855 8.29139273 -0.07072610 %
9.68000000 0.23440305 0.05643880 8.48156749 8.48789193 -0.07451132 %
9.90000000 0.23372538 0.04812583 8.67783756 8.68464870 -0.07842730 %
10.12000000 0.23305764 0.03972030 8.87434400 8.88166935 -0.08247721 %
10.34000000 0.23239902 0.03122895 9.07109202 9.07896024 -0.08666431 %
10.56000000 0.23174836 0.02265874 9.26808687 9.27652776 -0.09099195 %
10.78000000 0.23110414 0.01401680 9.46533374 9.47437832 -0.09546357 %
11.00000000 0.23046444 0.00531050 9.66283787 9.67251839 -0.10008274 %
11.22000000 0.22982687 -0.00345260 9.86060445 9.87095445 -0.10485309 %
11.44000000 0.22918860 -0.01226470 10.05863868 10.06969303 -0.10977839 %
11.66000000 0.22854628 -0.02111778 10.25694576 10.26874069 -0.11486250 %
11.88000000 0.22789602 -0.03000358 10.45553087 10.46810405 -0.12010940 %
12.10000000 0.22723331 -0.03891363 10.65439920 10.66778974 -0.12552317 %
12.32000000 0.22655302 -0.04783920 10.85355590 10.86780446 -0.13110802 %
12.54000000 0.22584935 -0.05677132 11.05300613 11.06815492 -0.13686827 %
12.76000000 0.22511573 -0.06570075 11.25275505 11.26884790 -0.14280837 %
12.98000000 0.22434484 -0.07461801 11.45280777 11.46989021 -0.14893290 %
13.20000000 0.22352850 -0.08351335 11.65316943 11.67128871 -0.15524656 %
13.42000000 0.22265762 -0.09237673 11.85384513 11.87305029 -0.16175420 %
13.64000000 0.22172215 -0.10119786 12.05483996 12.07518190 -0.16846080 %
13.86000000 0.22071100 -0.10996613 12.25615899 12.27769055 -0.17537148 %
14.08000000 0.21961201 -0.11867065 12.45780727 12.48058328 -0.18249153 %
14.30000000 0.21841179 -0.12730023 12.65978984 12.68386717 -0.18982639 %
14.52000000 0.21709573 -0.13584335 12.86211172 12.88754938 -0.19738165 %
14.74000000 0.21564785 -0.14428819 13.06477789 13.09163709 -0.20516309 %
14.96000000 0.21405078 -0.15262257 13.26779330 13.29613757 -0.21317666 %
15.18000000 0.21228557 -0.16083399 13.47116291 13.50105810 -0.22142848 %
15.40000000 0.21033169 -0.16890960 13.67489161 13.70640605 -0.22992489 %
15.62000000 0.20816686 -0.17683616 13.87898427 13.91218882 -0.23867241 %
15.84000000 0.20576694 -0.18460009 14.08344573 14.11841390 -0.24767778 %
16.06000000 0.20310586 -0.19218740 14.28828078 14.32508880 -0.25694797 %
16.28000000 0.20015542 -0.19958371 14.49349418 14.53222112 -0.26649018 %
16.50000000 0.19688524 -0.20677422 14.69909064 14.73981850 -0.27631186 %
16.72000000 0.19326254 -0.21374373 14.90507481 14.94788866 -0.28642071 %
16.94000000 0.18925205 -0.22047656 15.11145130 15.15643936 -0.29682472 %
17.16000000 0.18481581 -0.22695661 15.31822466 15.36547845 -0.30753216 %
17.38000000 0.17991303 -0.23316728 15.52539936 15.57501382 -0.31855161 %
17.60000000 0.17449988 -0.23909151 15.73297983 15.78505345 -0.32989199 %
17.82000000 0.16852935 -0.24471171 15.94097038 15.99560538 -0.34156254 %
18.04000000 0.16195100 -0.25000977 16.14937529 16.20667772 -0.35357292 %
18.26000000 0.15471078 -0.25496706 16.35819871 16.41827863 -0.36593312 %
18.48000000 0.14675080 -0.25956436 16.56744471 16.63041638 -0.37865361 %
18.70000000 0.13800907 -0.26378186 16.77711725 16.84309930 -0.39174528 %
18.92000000 0.12841929 -0.26759917 16.98722017 17.05633577 -0.40521951 %
19.14000000 0.11791055 -0.27099524 17.19775718 17.27013427 -0.41908819 %
19.36000000 0.10640709 -0.27394838 17.40873187 17.48450337 -0.43336377 %
19.58000000 0.09382795 -0.27643619 17.62014765 17.69945169 -0.44805930 %
19.80000000 0.08008668 -0.27843560 17.83200779 17.91498795 -0.46318848 %
20.02000000 0.06509105 -0.27992276 18.04431537 18.13112095 -0.47876568 %
20.24000000 0.04874263 -0.28087306 18.25707325 18.34785956 -0.49480604 %
20.46000000 0.03093648 -0.28126108 18.47028410 18.56521276 -0.51132548 %
20.68000000 0.01156072 -0.28106057 18.68395034 18.78318960 -0.52834084 %
20.90000000 -0.00950384 -0.28024438 18.89807413 19.00179922 -0.54586986 %
21.12000000 -0.03238418 -0.27878447 19.11265733 19.22105086 -0.56393134 %
21.34000000 -0.05721548 -0.27665181 19.32770150 19.44095384 -0.58254518 %
21.56000000 -0.08414160 -0.27381639 19.54320784 19.66151759 -0.60173251 %
21.78000000 -0.11331564 -0.27024715 19.75917717 19.88275161 -0.62151576 %
22.00000000 -0.14490038 -0.26591192 19.97560989 20.10466552 -0.64191884 %
Maintained by John Loomis, last updated 29 May 2009
