optics5

Contents

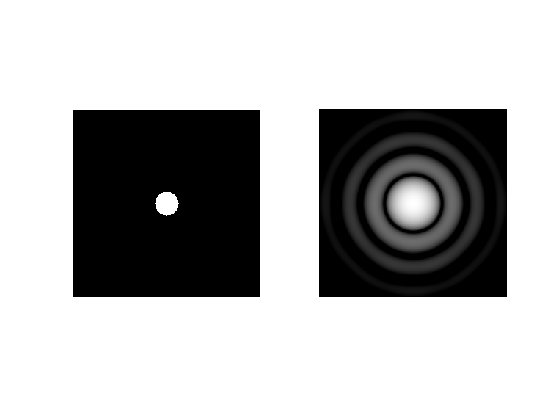

cylinder

try for w = 0.5, 1, 2

% diameter w
w = 1;
func = @(x,y) cyl(x,y,w);
str = sprintf('diameter %g',w);

[out in] = fourier2(func);

subplot(1,1,1);
rgb = cat(3,in,in,in);
imagesc([-4 4],[4 -4],rgb);
axis equal
axis square
axis([-4 4 -4 4]);

close all

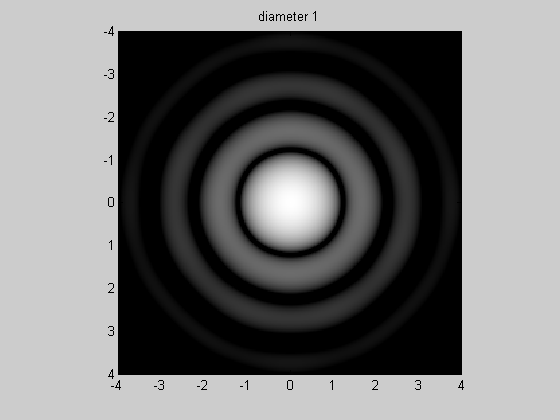

g = logim(out,3);
rgb = cat(3,g,g,g);
image([-4 4],[4 -4],rgb);
title(str);
axis equal
axis square
axis([-4 4 -4 4]);

close all
sz = size(out);
N = sz(1);
k = -N/2:N/2-1;
width = 8;
x = width*k/N;
idy = find(x==0);
y = out(:,idy);
idx  = find(abs(x)<2);
yt = somb(w*x).^2;
subplot(2,1,1);
plot(x,y,x,yt);
title(str);
subplot(2,1,2);
semilogy(x,y,x,yt);
xlabel('cross-section x');

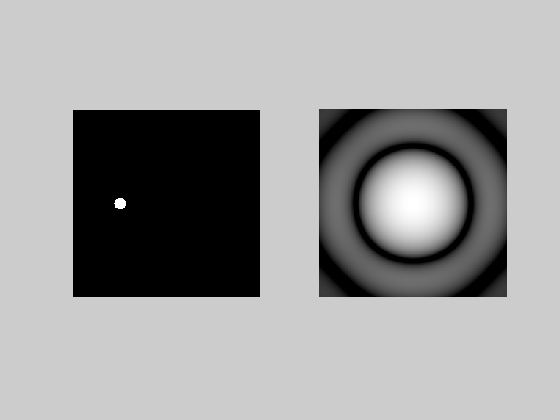

shifted cylinder

w = 0.5;
xs = 2;

fprintf('shift %g',-xs);
func = @(x,y) cyl(x+xs,y,w);
fourier2(func);

shift -2

phase-shifted cylinder

w = 2;
xi = 2;
func = @(x,y) cyl(x,y,w).*exp(j*2*pi*xi*x);
fourier2(func);

interference of two apertures

w = 0.5;
xs = 1;

func = @(x,y) cyl(x+xs,y,w)+cyl(x-xs,y,w);
out = fourier2(func);
imshow(out);

moving apertures closer together

w = 0.5;
xs = 0.5;

func = @(x,y) cyl(x+xs,y,w)+cyl(x-xs,y,w);
out = fourier2(func);
imshow(out);

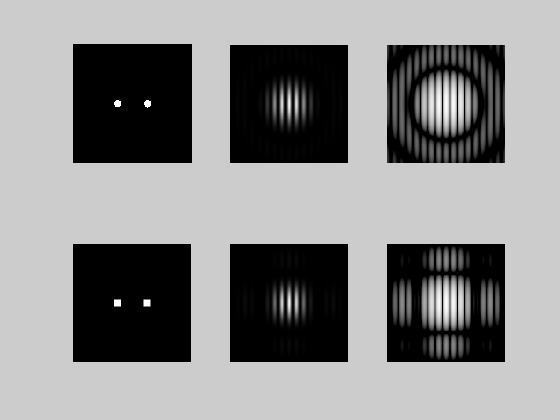

effect of aperture shape

w = 0.5;
xs = 1.0;

func1 = @(x,y) cyl(x+xs,y,w)+cyl(x-xs,y,w);
func2 = @(x,y) rect(x+xs,w).*rect(y,w)+rect(x-xs,w).*rect(y,w);
[out1 in1] = fourier2(func1);
[out2 in2] = fourier2(func2);
subplot(2,3,1); imshow(in1);
subplot(2,3,2); imshow(out1);
subplot(2,3,3); imshow(logim(out1,3));
subplot(2,3,4); imshow(in2);
subplot(2,3,5); imshow(out2);
subplot(2,3,6); imshow(logim(out2,3));

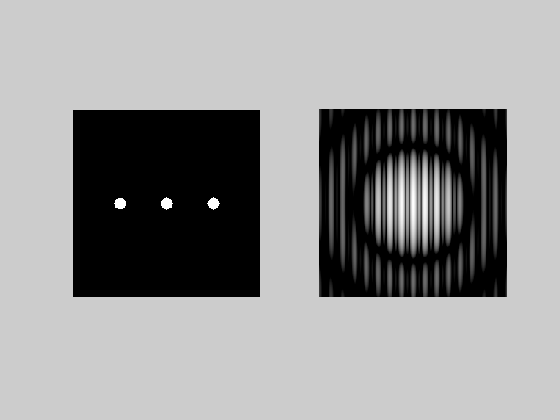

interference of three apertures

global n;
n = 1;
fourier(@func3);

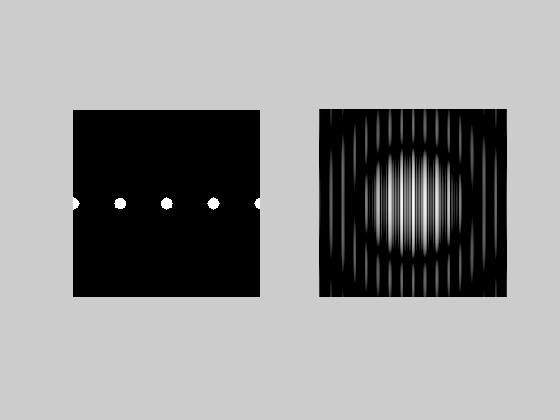

interference of five apertures

n = 2;
fourier(@func3);

Published with MATLAB® 7.6
