2D Gaussian
Contents

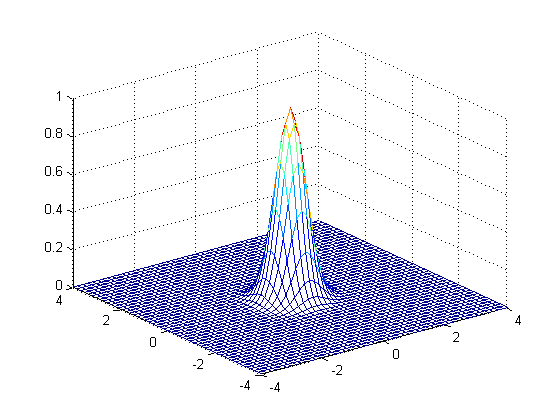

meshplot
[x,y]=meshgrid(linspace(-4,4,51)); r = sqrt(x.*x+y.*y); z = gaus(r); mesh(x,y,z);

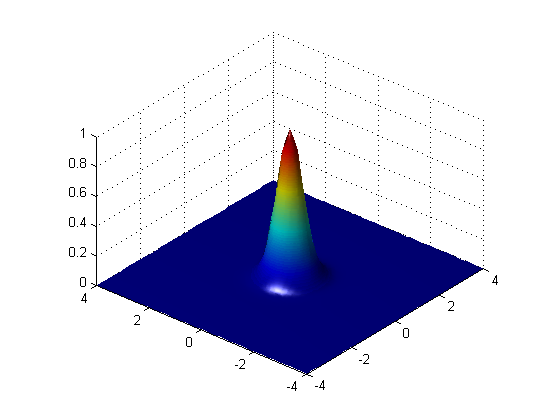

surface plot
surf(x,y,z,'FaceColor','interp','EdgeColor','none','FaceLighting','phong'); daspect([5 5 1]); view(-50,30); camlight left;

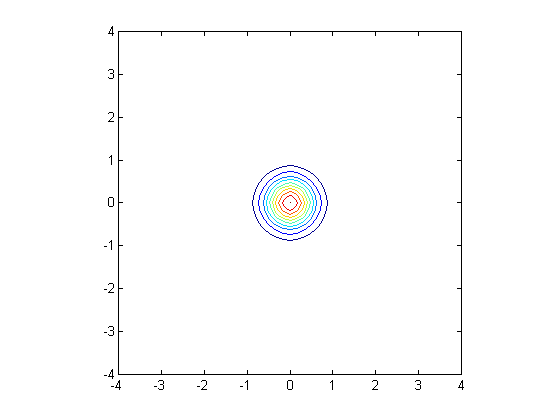

contour plot
contour(x,y,z);
axis square;
image plot
imshow(z);
resize image
imshow(imresize(z,10));

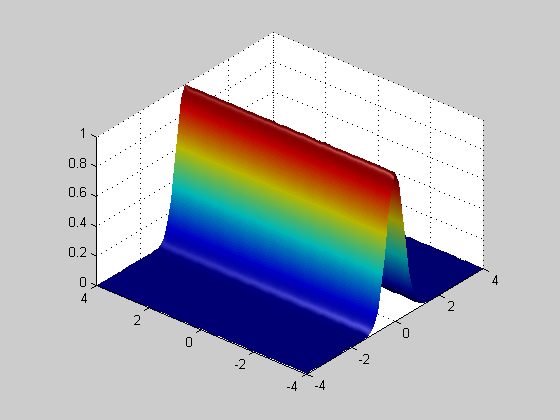

gaus(x)
close all;
z = gaus(x);
mysurf(x,y,z);

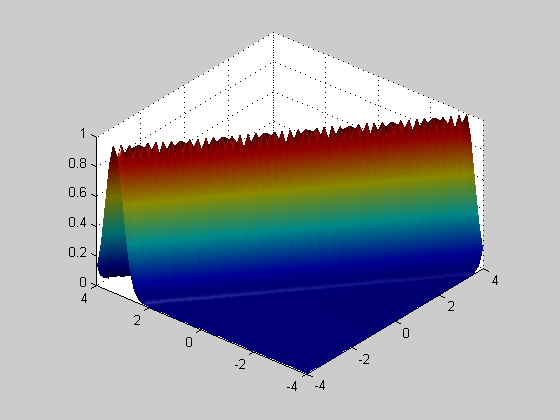

skewed gaussian line
use the view control to make the plot look like the slide.
z = gaus(x+1.2*y); mysurf(x,y,z);
