» out1 = (maxfilt(gray)+minfilt(gray))/2; » imwrite(out1,'cameraman_out1.jpg');
A minmax neighborhood filter finds the minimum (maximum) pixel in 3 x 3 neighborhoods of each pixel. Repeated calls to the filter extend the size of the neighborhood.
Matlab code for this study maybe downloaded from minmax.zip.
As a simple example, consider the case of isolated pixels on a zero background:
» a = zeros(9);
» idx = [1 5 9];
» a(idx,idx) = 1
a =
1 0 0 0 1 0 0 0 1
0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0
1 0 0 0 1 0 0 0 1
0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0
1 0 0 0 1 0 0 0 1
» maxfilt(a)
ans =
1 1 0 1 1 1 0 1 1
1 1 0 1 1 1 0 1 1
0 0 0 0 0 0 0 0 0
1 1 0 1 1 1 0 1 1
1 1 0 1 1 1 0 1 1
1 1 0 1 1 1 0 1 1
0 0 0 0 0 0 0 0 0
1 1 0 1 1 1 0 1 1
1 1 0 1 1 1 0 1 1
» -minfilt(-a)
ans =
1 1 0 1 1 1 0 1 1
1 1 0 1 1 1 0 1 1
0 0 0 0 0 0 0 0 0
1 1 0 1 1 1 0 1 1
1 1 0 1 1 1 0 1 1
1 1 0 1 1 1 0 1 1
0 0 0 0 0 0 0 0 0
1 1 0 1 1 1 0 1 1
1 1 0 1 1 1 0 1 1
» gray = imread('cameraman.tif');
» gray = im2double(gray);
» imwrite(gray,'cameraman.jpg');
Original image
» out1 = (maxfilt(gray)+minfilt(gray))/2;
» imwrite(out1,'cameraman_out1.jpg');
filtered image (rep=1)
» diff = imdiff(out1,gray);
maximum difference: 0.433333
» imwrite(diff,'cameraman_diff1.jpg');
difference image (rep=1)
» out2 = (maxfilt(gray,2)+minfilt(gray,2))/2;
» imwrite(out2,'cameraman_out2.jpg');
filtered image (rep=2)
» diff = imdiff(out2,gray);
maximum difference: 0.462745
» imwrite(diff,'cameraman_diff2.jpg');
difference image (rep=2)
The effect here is very similar to the Laplacian filter:
» lap = fspecial('laplacian');
» out = filter2(lap,gray);
» diff = imdiff(out);
maximum difference: 1.79346
» imwrite(diff,'cameraman_laplacian.jpg');
laplacian image
» rgb = imread('flowers.tif');
» rgb = im2double(rgb);
» imwrite(rgb,'flowers.jpg');
original image
» out2 = (maxfilt(rgb,2)+minfilt(rgb,2))/2;
» imwrite(out2,'flowers_out2.jpg');
filtered image (rep=2)
» diff = imdiff(out2,rgb);
maximum difference: 0.447059
» imwrite(diff,'flowers_diff2.jpg');

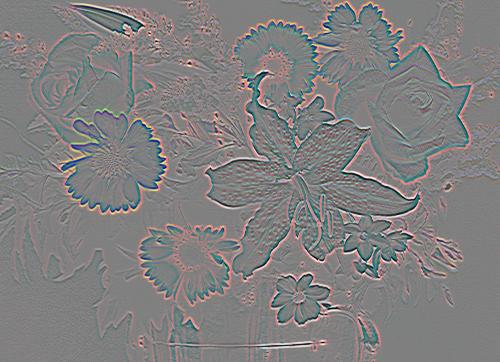

difference image (rep=2)
