From Edge to Line

A line is a pair of parallel opposing edges closer than some standard sample distance.

Ideal Line

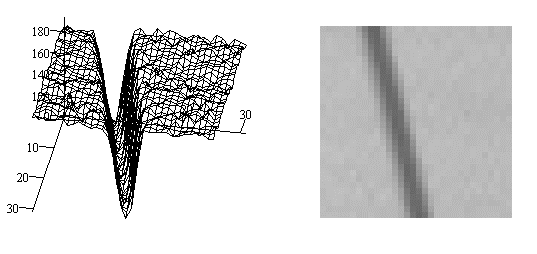

"Ravine" Line Profile

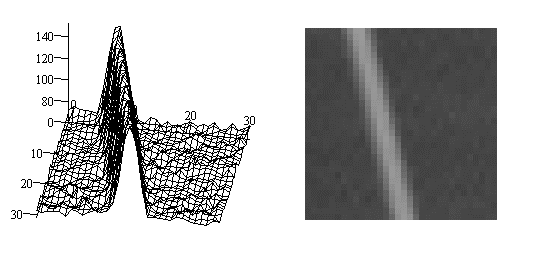

"Ridge" Line Profile

Mixed (Edge - Line)

Line Algorithm

Masks for Quadratic Fit

Interpretation of Line Parameters

• b₀ determines ridge height (not used)
• b₃ determines line strength and width
• b₄ & b₅ determine orientation and elongation
• b₁ & b₂ are related to centroid (used indirectly)

Example
