This program derived from the demo bounce2.py. Motion is confined to an xy-plane.

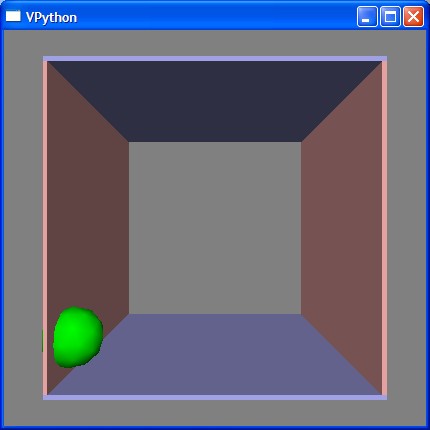

You can see a problem with wall penetration in the right screenshot below. This effect is more apparent when you reduce the frame rate (so the ball travels further between frames.) In this case, the frame rate was reduced to 8.
collide1.py01: from visual import * 02: 03: side = 40 04: thk = 1 05: s2 = 2*side - thk 06: s3 = 2*side + thk 07: gray_red = (1.0,0.7,0.7) 08: gray_blue = (0.7,0.7,1.0) 09: wallR = box (pos=( side, 0, 0), length=thk, height=s2, width=s3, color = gray_red ) 10: wallL = box (pos=(-side, 0, 0), length=thk, height=s2, width=s3, color = gray_red ) 11: wallB = box (pos=(0, -side, 0), length=s3, height=thk, width=s3, color = gray_blue) 12: wallT = box (pos=(0, side, 0), length=s3, height=thk, width=s3, color = gray_blue) 13: 14: #scene = display.get_selected() 15: scene.background = (0.5,0.5,0.5) 16: 17: ball = sphere (color = color.green, radius = 8) 18: ball.mass = 1.0 19: ball.v = vector (-1.5, -2.3, 0.0) 20: ball.z = 30 21: 22: side = side - thk*0.5 - ball.radius 23: 24: # Experiment with different values of fps to show sphere penetration of the walls 25: fps = 100 26: dt = 50.0/fps 27: t=0.0 28: while 1: 29: rate(fps) 30: t = t + dt 31: ball.pos = ball.pos + (ball.v)*dt 32: if not (side > ball.x > -side): 33: ball.v.x = -ball.v.x 34: if not (side > ball.y > -side): 35: ball.v.y = -ball.v.y
