StackPaneDemo2.java


StackPaneDemo2.java

import javafx.application.Application;
import javafx.collections.ObservableList;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Node;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.CheckBox;
import javafx.scene.control.Label;
import javafx.scene.layout.StackPane;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;

public class StackPaneDemo2 extends Application {

   private StackPane stackPane;

   @Override
   public void start(Stage primaryStage) throws Exception {

       VBox root = new VBox();

       // StackPane
       stackPane = new StackPane();

       // Add Label to StackPane
       Label label = new Label("I'm a Label");
       label.setStyle("-fx-background-color:yellow");
       label.setPadding(new Insets(5,5,5,5));
       // Hide this label.
       label.setVisible(false);

       stackPane.getChildren().add(label);


       // Add Button to StackPane
       Button button = new Button("I'm a Button");
       button.setStyle("-fx-background-color: cyan");
       button.setPadding(new Insets(5,5,5,5));
       // Hide this button.
       button.setVisible(false);

       stackPane.getChildren().add(button);


       // Add CheckBox to StackPane
       CheckBox checkBox = new CheckBox("I'm a CheckBox");
       checkBox.setOpacity(1);
       checkBox.setStyle("-fx-background-color:olive");
       checkBox.setPadding(new Insets(5,5,5,5));
       // Show this checkBox (default).
       checkBox.setVisible(true);

       stackPane.getChildren().add(checkBox);


       //
       stackPane.setPrefSize(300, 150);
       stackPane.setStyle("-fx-background-color: Gainsboro;-fx-border-color: blue;");

       //
       root.getChildren().add(stackPane);

       Button controlButton = new Button("Change Top");

       root.getChildren().add(controlButton);
       root.setAlignment(Pos.CENTER);
       VBox.setMargin(stackPane, new Insets(10, 10, 10, 10));
       VBox.setMargin(controlButton, new Insets(10, 10, 10, 10));
       //

       Scene scene = new Scene(root, 550, 250);

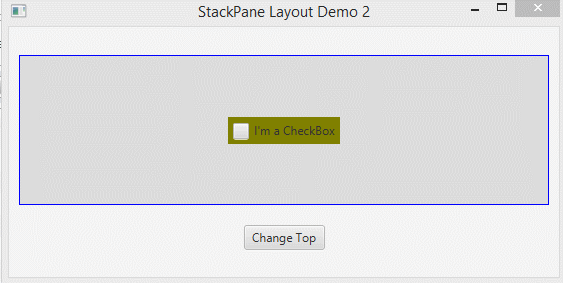

       primaryStage.setTitle("StackPane Layout Demo 2");
       primaryStage.setScene(scene);

       controlButton.setOnAction(new EventHandler<ActionEvent>() {

           @Override
           public void handle(ActionEvent event) {
               changeTop();
           }

       });

       primaryStage.show();
   }

   private void changeTop() {
       ObservableList<Node> childs = this.stackPane.getChildren();

       if (childs.size() > 1) {
           //
           Node topNode = childs.get(childs.size()-1);

           // This node will be brought to the front
           Node newTopNode = childs.get(childs.size()-2);

           topNode.setVisible(false);
           topNode.toBack();

           newTopNode.setVisible(true);
       }
   }

   public static void main(String[] args) {
       launch(args);
   }

}
