See Java Notes: Buffered Images
Download source files from clock.zip.
ClockAnalogBuf.java

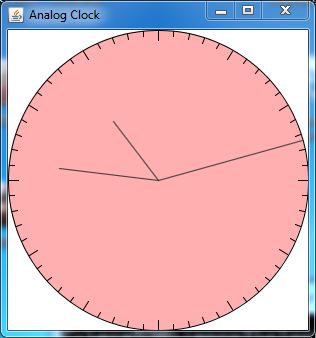

// File : GUI-lowlevel/animation/analogclock/ClockAnalogBuf.java // Purpose: An applet/application which displays our clock component. // Tag : <applet code="ClockAnalogBuf.class" height="300" width="300"/> // Author : Fred Swartz, 1999-2007, Placed in public domain. import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; import java.util.*; ///////////////////////////////////////////////////////////// ClockAnalogBuf public class ClockAnalogBuf extends JApplet { //=============================================================== fields private Clock _clock; // Our clock component. //================================================================= main public static void main(String[] args) { JFrame window = new JFrame(); window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); window.setTitle("Analog Clock"); window.setContentPane(new ClockAnalogBuf()); window.pack(); // Layout components window.setLocationRelativeTo(null); // Center window. window.setVisible(true); } //========================================================== constructor public ClockAnalogBuf() { //... Create an instance of our new clock component. _clock = new Clock(); //... Set the applet's layout and add the clock to it. setLayout(new BorderLayout()); add(_clock, BorderLayout.CENTER); //... Start the clock running. start(); } //=============================================================== start @Override public void start() { _clock.start(); } //================================================================ stop @Override public void stop() { _clock.stop(); } }
Clock.java
// File : GUI-lowlevel/animation/analogclock/Clock.java // Purpose: An analog clock component -- Uses Timer and Calendar. // Note : Uses a BufferedImage for clock face so isn't drawn each time. // Author : Fred Swartz, 1999-2007, Placed in public domain. import java.util.*; import java.awt.*; import java.awt.event.*; import javax.swing.*; import java.awt.image.*; //////////////////////////////////////////////////////////////// Clock class class Clock extends JComponent { //============================================================ constants private static final double TWO_PI = 2.0 * Math.PI; private static final int UPDATE_INTERVAL = 100; // Millisecs //=============================================================== fields private Calendar _now = Calendar.getInstance(); // Current time. private int _diameter; // Height and width of clock face private int _centerX; // x coord of middle of clock private int _centerY; // y coord of middle of clock private BufferedImage _clockImage; // Saved image of the clock face. private javax.swing.Timer _timer; // Fires to update clock. //==================================================== Clock constructor public Clock() { setPreferredSize(new Dimension(300,300)); _timer = new javax.swing.Timer(UPDATE_INTERVAL, new ActionListener() { public void actionPerformed(ActionEvent e) { updateTime(); repaint(); } }); } //================================================================ start /** Start the timer. */ public void start() { _timer.start(); } //================================================================= stop /** Stop the timer. */ public void stop() { _timer.stop(); } //=========================================================== updateTime private void updateTime() { //... Avoid creating new objects. _now.setTimeInMillis(System.currentTimeMillis()); } //======================================================= paintComponent @Override public void paintComponent(Graphics g) { Graphics2D g2 = (Graphics2D)g; g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON); //... The panel may have been resized, get current dimensions int w = getWidth(); int h = getHeight(); _diameter = ((w < h) ? w : h); _centerX = _diameter / 2; _centerY = _diameter / 2; //... Create the clock face background image if this is the first time, // or if the size of the panel has changed if (_clockImage == null || _clockImage.getWidth() != w || _clockImage.getHeight() != h) { _clockImage = (BufferedImage)(this.createImage(w, h)); //... Get a graphics context from this image Graphics2D g2a = _clockImage.createGraphics(); g2a.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON); drawClockFace(g2a); } //... Draw the clock face from the precomputed image g2.drawImage(_clockImage, null, 0, 0); //... Draw the clock hands dynamically each time. drawClockHands(g2); } //====================================== convenience method drawClockHands private void drawClockHands(Graphics2D g2) { //... Get the various time elements from the Calendar object. int hours = _now.get(Calendar.HOUR); int minutes = _now.get(Calendar.MINUTE); int seconds = _now.get(Calendar.SECOND); int millis = _now.get(Calendar.MILLISECOND); //... second hand int handMin = _diameter / 8; // Second hand doesn't start in middle. int handMax = _diameter / 2; // Second hand extends to outer rim. double fseconds = (seconds + (double)millis/1000) / 60.0; drawRadius(g2, fseconds, 0, handMax); //... minute hand handMin = 0; // Minute hand starts in middle. handMax = _diameter / 3; double fminutes = (minutes + fseconds) / 60.0; drawRadius(g2, fminutes, 0, handMax); //... hour hand handMin = 0; handMax = _diameter / 4; drawRadius(g2, (hours + fminutes) / 12.0, 0, handMax); } //======================================= convenience method drawClockFace private void drawClockFace(Graphics2D g2) { // ... Draw the clock face. Probably into a buffer. g2.setColor(Color.PINK); g2.fillOval(0, 0, _diameter, _diameter); g2.setColor(Color.BLACK); g2.drawOval(0, 0, _diameter, _diameter); int radius = _diameter / 2; //... Draw the tick marks around the circumference. for (int sec = 0; sec < 60; sec++) { int tickStart; if (sec%5 == 0) { tickStart = radius - 10; // Draw long tick mark every 5. } else { tickStart = radius - 5; // Short tick mark. } drawRadius(g2, sec / 60.0, tickStart , radius); } } //==================================== convenience method drawRadius // This draw lines along a radius from the clock face center. // By changing the parameters, it can be used to draw tick marks, // as well as the hands. private void drawRadius(Graphics2D g2, double percent, int minRadius, int maxRadius) { //... percent parameter is the fraction (0.0 - 1.0) of the way // clockwise from 12. Because the Graphics2D methods use radians // counterclockwise from 3, a little conversion is necessary. // It took a little experimentation to get this right. double radians = (0.5 - percent) * TWO_PI; double sine = Math.sin(radians); double cosine = Math.cos(radians); int dxmin = _centerX + (int)(minRadius * sine); int dymin = _centerY + (int)(minRadius * cosine); int dxmax = _centerX + (int)(maxRadius * sine); int dymax = _centerY + (int)(maxRadius * cosine); g2.drawLine(dxmin, dymin, dxmax, dymax); } }
