JPanel keyPanel = new JPanel();
keyPanel.setLayout(new GridLayout(4, 3));
for (int i = 0; i < 12; i++)
{
JButton keyButton = new JButton(...);
keyPanel.add(keyButton);
keyButton.addActionListener(...);
}

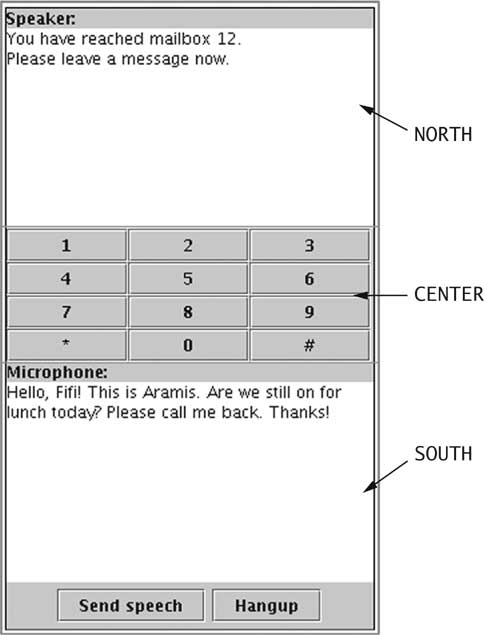

JPanel speakerPanel = new JPanel();
speakerPanel.setLayout(new BorderLayout());
speakerPanel.add(new JLabel("Speaker:"), BorderLayout.NORTH);
speakerField = new JTextArea(10, 25);
speakerPanel.add(speakerField, BorderLayout.CENTER);
See:
Connection.java
/** Connect a phone to the mail system. */ public class Connection { /** Construct a Connection object. @param s a MailSystem object @param p a Telephone object */ public Connection(MailSystem s, Telephone p) { system = s; thePhone = p; resetConnection(); } /** Respond to the user's pressing a key on the phone touchpad @param key the phone key pressed by the user */ public void dial(String key) { if (state == CONNECTED) connect(key); else if (state == RECORDING) login(key); else if (state == CHANGE_PASSCODE) changePasscode(key); else if (state == CHANGE_GREETING) changeGreeting(key); else if (state == MAILBOX_MENU) mailboxMenu(key); else if (state == MESSAGE_MENU) messageMenu(key); } /** Record voice. @param voice voice spoken by the user */ public void record(String voice) { currentRecording += voice; } /** The user hangs up the phone. */ public void hangup() { if (state == RECORDING) currentMailbox.addMessage(new Message(currentRecording)); resetConnection(); } /** Reset the connection to the initial state and prompt for mailbox number */ private void resetConnection() { currentRecording = ""; accumulatedKeys = ""; state = CONNECTED; thePhone.speak(initialPrompt); } /** Try to connect the user with the specified mail box. @param key the phone key pressed by the user */ private void connect(String key) { if (key.equals("#")) { currentMailbox = system.findMailbox(accumulatedKeys); if (currentMailbox != null) { state = RECORDING; thePhone.speak(currentMailbox.getGreeting()); } else thePhone.speak("Incorrect mailbox number. Try again!"); accumulatedKeys = ""; } else accumulatedKeys += key; } /** Try to log in the user. @param key the phone key pressed by the user */ private void login(String key) { if (key.equals("#")) { if (currentMailbox.checkPasscode(accumulatedKeys)) { state = MAILBOX_MENU; thePhone.speak(mailboxMenu); } else thePhone.speak("Incorrect passcode. Try again!"); accumulatedKeys = ""; } else accumulatedKeys += key; } /** Change passcode. @param key the phone key pressed by the user */ private void changePasscode(String key) { if (key.equals("#")) { currentMailbox.setPasscode(accumulatedKeys); state = MAILBOX_MENU; thePhone.speak(mailboxMenu); accumulatedKeys = ""; } else accumulatedKeys += key; } /** Change greeting. @param key the phone key pressed by the user */ private void changeGreeting(String key) { if (key.equals("#")) { currentMailbox.setGreeting(currentRecording); currentRecording = ""; state = MAILBOX_MENU; thePhone.speak(mailboxMenu); } } /** Respond to the user's selection from mailbox menu. @param key the phone key pressed by the user */ private void mailboxMenu(String key) { if (key.equals("1")) { state = MESSAGE_MENU; thePhone.speak(messageMenu); } else if (key.equals("2")) { state = CHANGE_PASSCODE; thePhone.speak("Enter new passcode followed by the # key"); } else if (key.equals("3")) { state = CHANGE_GREETING; thePhone.speak("Record your greeting, then press the # key"); } } /** Respond to the user's selection from message menu. @param key the phone key pressed by the user */ private void messageMenu(String key) { if (key.equals("1")) { String output = ""; Message m = currentMailbox.getCurrentMessage(); if (m == null) output += "No messages." + "\n"; else output += m.getText() + "\n"; output += messageMenu; thePhone.speak(output); } else if (key.equals("2")) { currentMailbox.saveCurrentMessage(); thePhone.speak(messageMenu); } else if (key.equals("3")) { currentMailbox.removeCurrentMessage(); thePhone.speak(messageMenu); } else if (key.equals("4")) { state = MAILBOX_MENU; thePhone.speak(mailboxMenu); } } private MailSystem system; private Mailbox currentMailbox; private String currentRecording; private String accumulatedKeys; private Telephone thePhone; private int state; private static final int DISCONNECTED = 0; private static final int CONNECTED = 1; private static final int RECORDING = 2; private static final int MAILBOX_MENU = 3; private static final int MESSAGE_MENU = 4; private static final int CHANGE_PASSCODE = 5; private static final int CHANGE_GREETING = 6; private static final String initialPrompt = "Please enter mailbox number followed by #"; private static final String mailboxMenu = "Enter 1 to listen to your messages\n" + "Enter 2 to change your passcode\n" + "Enter 3 to change your greeting"; private static final String messageMenu = "Enter 1 to listen to the current message\n" + "Enter 2 to save the current message\n" + "Enter 3 to delete the current message\n" + "Enter 4 to return to the main menu"; }
Mailbox.java
/** A mailbox contains messages that can be listed, kept or discarded. */ public class Mailbox { /** Create Mailbox object. @param aPasscode passcode number @param aGreeting greeting string */ public Mailbox(String aPasscode, String aGreeting) { passcode = aPasscode; greeting = aGreeting; newMessages = new MessageQueue(); keptMessages = new MessageQueue(); } /** Check if the entered supplied is correct. @param aPasscode a passcode to check @return true if the supplied passcode matches the mailbox passcode */ public boolean checkPasscode(String aPasscode) { return aPasscode.equals(passcode); } /** Add a message to the mailbox. @param aMessage the message to be added */ public void addMessage(Message aMessage) { newMessages.add(aMessage); } /** Get the current message. @return the current message */ Message getCurrentMessage() { if (newMessages.getLength() > 0) return newMessages.getHead(); else if (keptMessages.getLength() > 0) return keptMessages.getHead(); else return null; } /** Remove the current message from the mailbox. @return the message that has just been removed */ public Message removeCurrentMessage() { if (newMessages.getLength() > 0) return newMessages.remove(); else if (keptMessages.getLength() > 0) return keptMessages.remove(); else return null; } /** Save the current message */ public void saveCurrentMessage() { Message m = removeCurrentMessage(); if (m != null) keptMessages.add(m); } /** Change mailbox's greeting. @param newGreeting the new greeting string */ public void setGreeting(String newGreeting) { greeting = newGreeting; } /** Change mailbox's passcode. @param newPasscode the new passcode */ public void setPasscode(String newPasscode) { passcode = newPasscode; } /** Get the mailbox's greeting. @return the greeting */ String getGreeting() { return greeting; } private MessageQueue newMessages; private MessageQueue keptMessages; private String greeting; private String passcode; }
Message.java
/** A message left by the caller. */ public class Message { /** Construct a Message object. @param messageText the message text */ public Message(String messageText) { text = messageText; } /** Get the message text. @return message text */ public String getText() { return text; } private String text; }

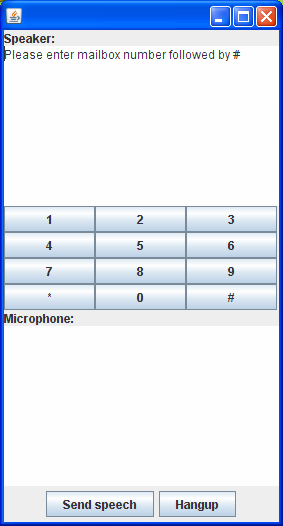

Telephone.java
import java.awt.*; import java.awt.event.*; import javax.swing.*; /** Presents a phone GUI for the voice mail system. */ public class Telephone { /** Constructs a telephone with a speaker, keypad, and microphone. */ public Telephone() { JPanel speakerPanel = new JPanel(); speakerPanel.setLayout(new BorderLayout()); speakerPanel.add(new JLabel("Speaker:"), BorderLayout.NORTH); speakerField = new JTextArea(10, 25); speakerPanel.add(speakerField, BorderLayout.CENTER); String keyLabels = "123456789*0#"; JPanel keyPanel = new JPanel(); keyPanel.setLayout(new GridLayout(4, 3)); for (int i = 0; i < keyLabels.length(); i++) { final String label = keyLabels.substring(i, i + 1); JButton keyButton = new JButton(label); keyPanel.add(keyButton); keyButton.addActionListener(new ActionListener() { public void actionPerformed(ActionEvent event) { connect.dial(label); } }); } final JTextArea microphoneField = new JTextArea(10, 25); JButton speechButton = new JButton("Send speech"); speechButton.addActionListener(new ActionListener() { public void actionPerformed(ActionEvent event) { connect.record(microphoneField.getText()); microphoneField.setText(""); } }); JButton hangupButton = new JButton("Hangup"); hangupButton.addActionListener(new ActionListener() { public void actionPerformed(ActionEvent event) { connect.hangup(); } }); JPanel buttonPanel = new JPanel(); buttonPanel.add(speechButton); buttonPanel.add(hangupButton); JPanel microphonePanel = new JPanel(); microphonePanel.setLayout(new BorderLayout()); microphonePanel.add(new JLabel("Microphone:"), BorderLayout.NORTH); microphonePanel.add(microphoneField, BorderLayout.CENTER); microphonePanel.add(buttonPanel, BorderLayout.SOUTH); JFrame frame = new JFrame(); frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); Container contentPane = frame.getContentPane(); contentPane.add(speakerPanel, BorderLayout.NORTH); contentPane.add(keyPanel, BorderLayout.CENTER); contentPane.add(microphonePanel, BorderLayout.SOUTH); frame.pack(); frame.setVisible(true); } /** Give instructions to the mail system user. */ public void speak(String output) { speakerField.setText(output); } public void run(Connection c) { connect = c; } private JTextArea speakerField; private Connection connect; }
MailSystemTest.java
public class MailSystemTest { public static void main(String[] args) { MailSystem system = new MailSystem(MAILBOX_COUNT); Telephone p = new Telephone(); Connection c = new Connection(system, p); p.run(c); } private static int MAILBOX_COUNT = 20; }
