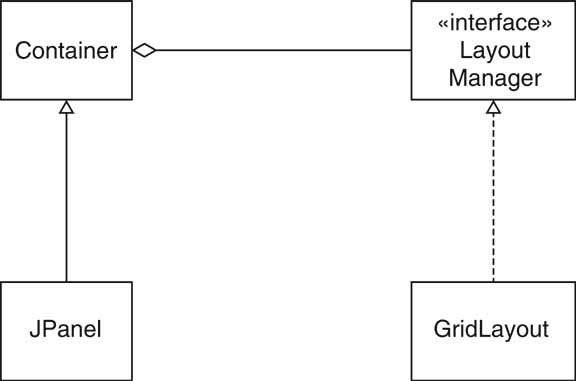

public interface LayoutManager
{
void layoutContainer(Container parent);
Dimension minimumLayoutSize(Container parent);
Dimension preferredLayoutSize(Container parent);
void addLayoutComponent(String name, Component comp);
void removeLayoutComponent(Component comp);
}
FormLayout.java
import java.awt.*; /** A layout manager that lays out components along a central axis */ class FormLayout implements LayoutManager { public Dimension preferredLayoutSize(Container parent) { Component[] components = parent.getComponents(); left = 0; right = 0; height = 0; for (int i = 0; i < components.length; i += 2) { Component cleft = components[i]; Component cright = components[i + 1]; Dimension dleft = cleft.getPreferredSize(); Dimension dright = cright.getPreferredSize(); left = Math.max(left, dleft.width); right = Math.max(right, dright.width); height = height + Math.max(dleft.height, dright.height); } return new Dimension(left + GAP + right, height); } public Dimension minimumLayoutSize(Container parent) { return preferredLayoutSize(parent); } public void layoutContainer(Container parent) { preferredLayoutSize(parent); // sets left, right Component[] components = parent.getComponents(); Insets insets = parent.getInsets(); int xcenter = insets.left + left; int y = insets.top; for (int i = 0; i < components.length; i += 2) { Component cleft = components[i]; Component cright = components[i + 1]; Dimension dleft = cleft.getPreferredSize(); Dimension dright = cright.getPreferredSize(); int height = Math.max(dleft.height, dright.height); cleft.setBounds(xcenter - dleft.width, y + (height - dleft.height) / 2, dleft.width, dleft.height); cright.setBounds(xcenter + GAP, y + (height - dright.height) / 2, dright.width, dright.height); y += height; } } public void addLayoutComponent(String name, Component comp) {} public void removeLayoutComponent(Component comp) {} private int left; private int right; private int height; private static final int GAP = 6; }
FormLayoutTest.java
import java.awt.*; import javax.swing.*; public class FormLayoutTest { public static void main(String[] args) { JFrame frame = new JFrame(); Container contentPane = frame.getContentPane(); contentPane.setLayout(new FormLayout()); contentPane.add(new JLabel("Name")); contentPane.add(new JTextField(15)); contentPane.add(new JLabel("Address")); contentPane.add(new JTextField(20)); contentPane.add(new JLabel("City")); contentPane.add(new JTextField(10)); contentPane.add(new JLabel("State")); contentPane.add(new JTextField(2)); contentPane.add(new JLabel("ZIP")); contentPane.add(new JTextField(5)); frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); frame.pack(); frame.setVisible(true); } }
