ECE323 Basic Electronic Circuits Assignment 3

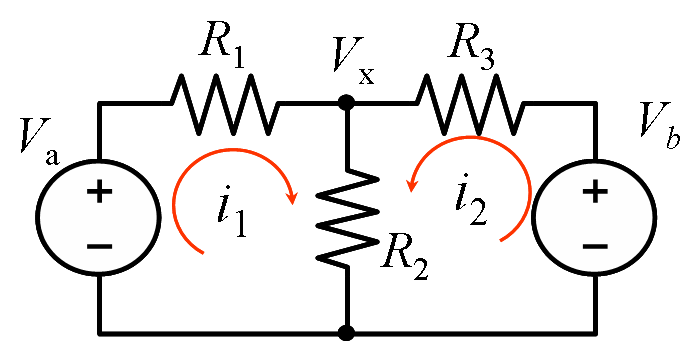

  1. Given the following circuit, with

    R1R2R3Vai1
    ohmsohmsohmsVoltsVolts
    10050012001016

    1. find i1 and i2 and Vx using the mesh current technique
    2. Find the power of each voltage source.
    3. Find the power dissipated by the 500 ohm resistor.

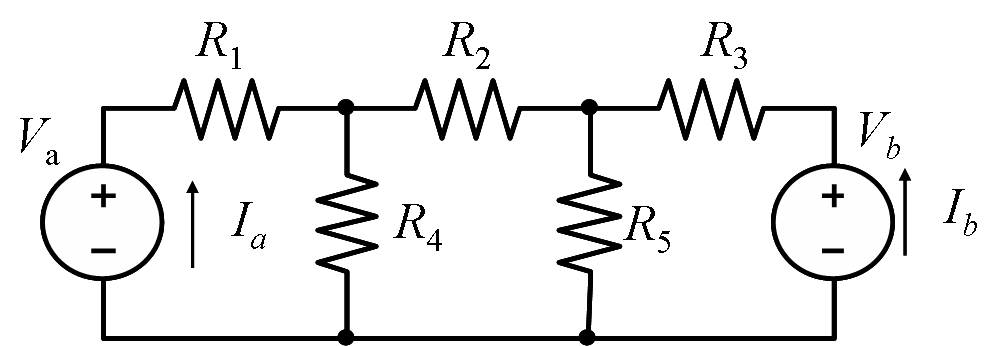

  2. Given the following circuit, with

    R1R2R3R4R5 VaVb
    ohmsohmsohmsohmsohmsVoltsVolts
    200600400800600 40 20

    1. Solve for Ia and Ib using the node voltage method.
    2. Find the power generated by each source.

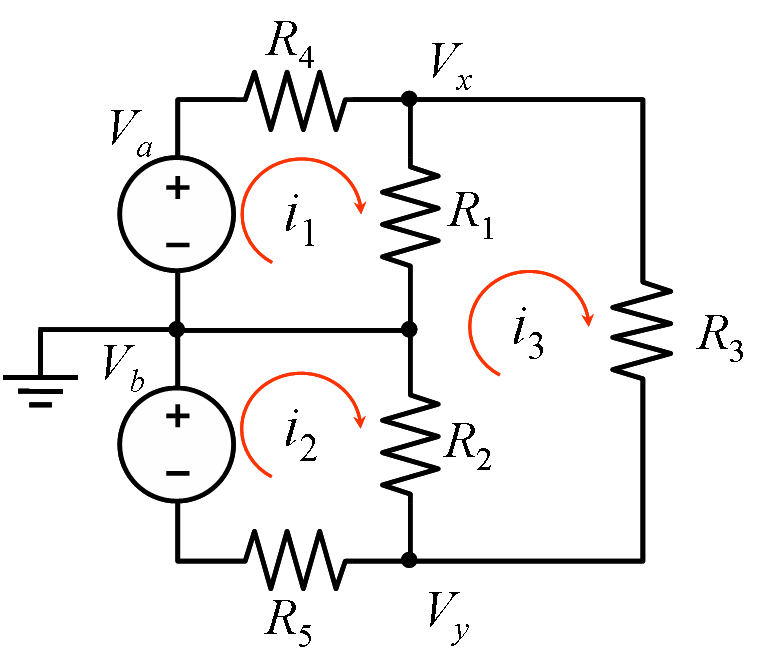

  3. Given the following circuit, with

    R1R2R3R4R5 VaVb
    ohmsohmsohmsohmsohmsVoltsVolts
    150400160130130 11 11

    Solve for Vx, Vy, i1, i2, and i3 using either the node voltage or the mesh current method.
