ECE323 Basic Electronic Circuits Assignment 10

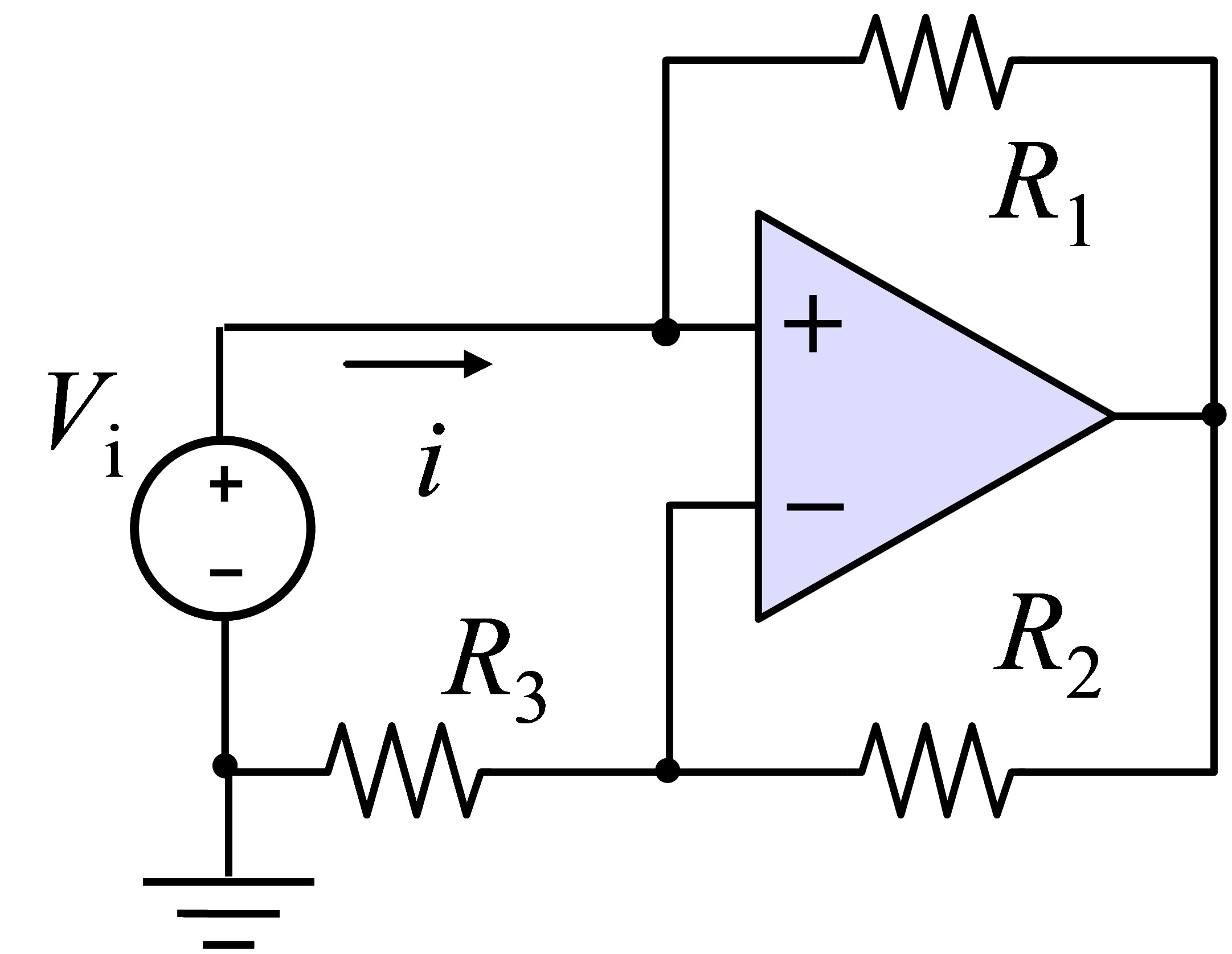

1. Find the current i in the circuit below with R₁ = 6 W, R₂ = 3 W, R₃ = 2 W, and V_i = 12 V.



2. Find the voltage V_o in the circuit below with R₁ = 2 kW, R₂ = 6 kW, R₃ = 4 kW, R_F = 12 kW, and V_i = 11 V.

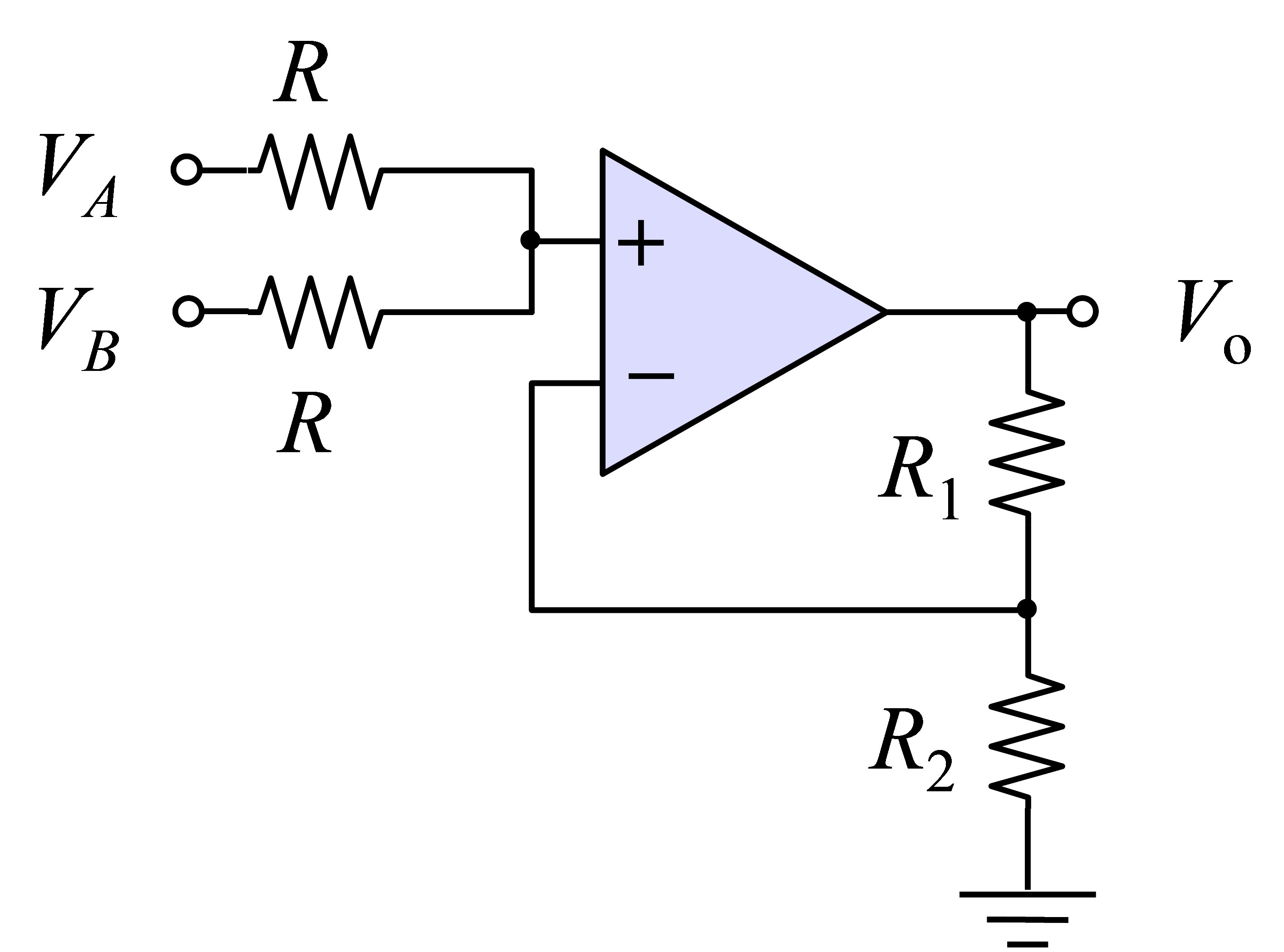

3. Find an expression for the output V_o in the circuit below. What mathematical operation does the circuit perform?
