USB-1208FS Data Acquistion System

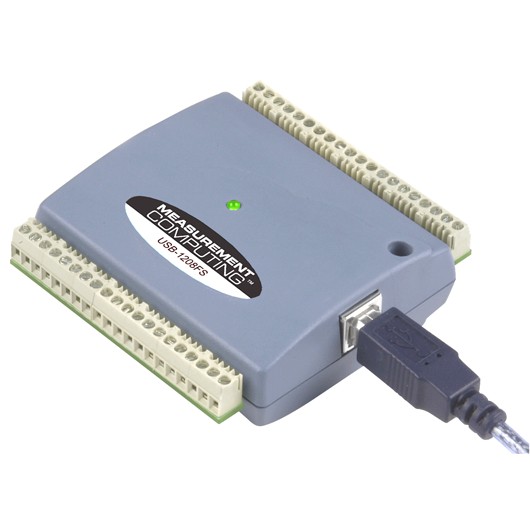

USB-1208FS is a USB bus-powered data acquistion module (DAQ) distributed by Measurement Computing Corporation (MCC). It features

  • 8 single-ended or 4 differential-input 12-bit analog inputs.
  • two 12-bit analog outputs.
  • 16 digital I/O lines.
  • up to 50K samples/second for analog input and 10K samples/second for analog output.

Product Specifications. (pdf)
Product User's Manual. (pdf)

Installation

There is a software CD provided with the USB-1208FS module. However, you should be aware that the software on the CD (version 5.72) is older than the software available from the corporate website (version 6.24). Also the product references are to PMD-1208FS, where PMD stands for Personal Measurment Device.

Software

Software downloads can be obtained from the MCC downloads page.


InstaCal Driver — is the minimum software needed to install, calibrate, and test your DAQ. It is compatible with Windows® 2000/XP/Vista (not 64-bit Vista). The current version is InstaCal 6.24


MCC DAQ CD. This download contains all the software that ships with MCC hardware. Includes InstaCAL, TracerDAQ, Universal Library and Universal Library for LabVIEW. The current version is 6.24.

DAQ Pin-Out Diagram


Maintained by John Loomis, last updated 30 August 2012
