Project: audio3

Download: project files

Direct Digital Synthesis (DDS)

The conversion of frequency to phase increment requires the multiplicative constant:

232/fs = 4294967296 / 46875 = 91625.97 or, reduced to an integer, 91626

Actual frequencies will be very slightly smaller than the desired frequency. For example, a desired frequency of 15 kHz measured 14999.85 kHz, compared to a predicted value of 14999.995

Verilog Implementation


//set up DDS frequency
//Use switches to set freq
wire [31:0] dds_incr;
wire [31:0] freq = SW[3:0]+10*SW[7:4]+100*SW[11:8]+1000*SW[15:12]+10000*SW[17:16];
assign dds_incr = freq * 91626 ; //91626 = 2^32/46875 so SW is in Hz

reg [31:0] dds_phase;

always @(negedge AUD_DACLRCK or negedge DLY_RST)
    if (!DLY_RST) dds_phase <= 0;
    else dds_phase <= dds_phase + dds_incr;

wire [7:0] index = dds_phase[31:24];


sine_table sig1(
    .index(index),
    .signal(audio_outR)
);

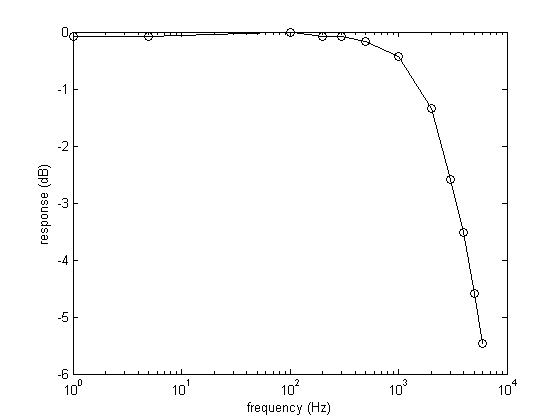

Frequency Response

Sample Waveforms

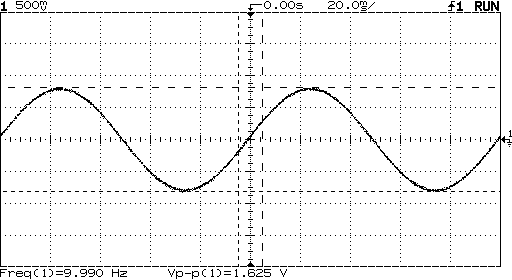

10 Hz

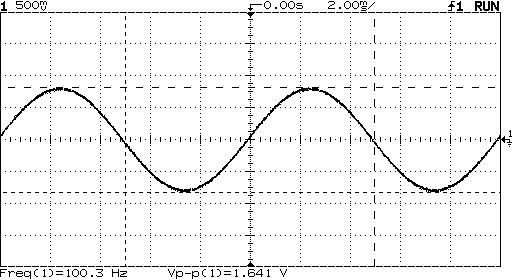

100 Hz

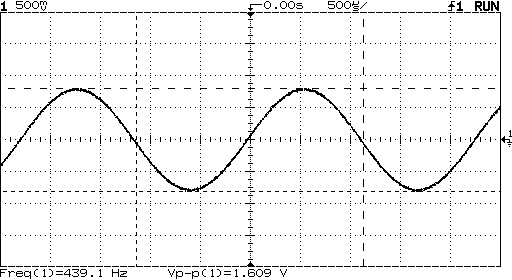

440 Hz


15 kHz

Reference

Verilog source and Quartus reports

National Instruments, Understanding Direct Digital Synthesis (DDS), (pdf)
